TIN KNOCKER TK1014 Hydraulic Brake | Brakes, Box & Pan Powered
Have one to sell?
1 available
New
Brand: Tin Knocker
Model: TK 1014
Type: Hydraulic Brake
Max Bending Length: 120"
Number and Width of Fingers: 6-3", 10-4", 10-5", 2-6"
Maximum Thickness: 14-gauge mild steel
Electrical: 3HP, 3PH, 230V, 15A
Controls & Adjustments:
Bend angle dial with limit switch for repeatable bends
Material thickness dial for faster clamp pressure setup
Adjustable clamp pressure with mechanical overlock
Adjustable top leaf open height
Two-position bending leaf angle bar
Control panel: key switch, leaf up/down, clamp/unclamp, motor start, auto cycle and emergency stop
Dimensions: Approx. 150" x 48" x 57"
Shipping Weight: 5,500 lbs.
Removable straight nose bar and 28 box and pan fingers (hardened tooling)
Bolted bottom bar, angle bar and insert bar

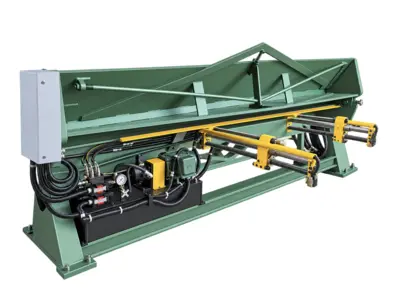

Compact hydraulic power unit with direct pump and oil level sight gauge
Electric foot switch for clamping
Back gauge with inch/cm scales and sheet support rods
TERMS:
FOB FACTORY, Escondido, CA, Includes Manufacturer’s 1-Year Warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
Brand: Tin Knocker
Model: TK 1014
Type: Hydraulic Brake
Max Bending Length: 120"
Number and Width of Fingers: 6-3", 10-4", 10-5", 2-6"
Maximum Thickness: 14-gauge mild steel
Electrical: 3HP, 3PH, 230V, 15A
Controls & Adjustments:
Bend angle dial with limit switch for repeatable bends
Material thickness dial for faster clamp pressure setup
Adjustable clamp pressure with mechanical overlock
Adjustable top leaf open height
Two-position bending leaf angle bar
Control panel: key switch, leaf up/down, clamp/unclamp, motor start, auto cycle and emergency stop
Dimensions: Approx. 150" x 48" x 57"
Shipping Weight: 5,500 lbs.
Removable straight nose bar and 28 box and pan fingers (hardened tooling)
Bolted bottom bar, angle bar and insert bar
Compact hydraulic power unit with direct pump and oil level sight gauge
Electric foot switch for clamping
Back gauge with inch/cm scales and sheet support rods
TERMS:
FOB FACTORY, Escondido, CA, Includes Manufacturer’s 1-Year Warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
