Cincinnati 20’ x 3/4” Hydraulic Shear
Have one to sell?
ConditionUsed
1 available

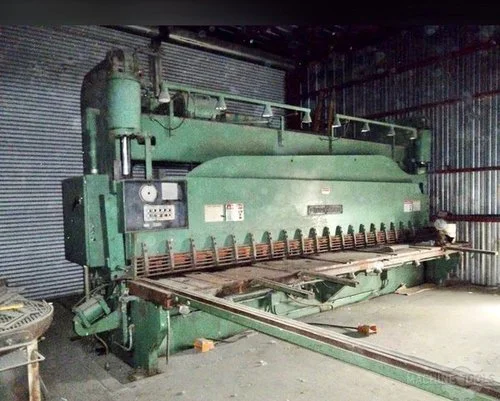

Large Capacity Cincinnati 20' x 3/4" Hydraulic Shear located in Nevada
High Capacity, Mega Shear
Mfgr: Cincinnati
Model: 6S20
Max Cut Length: 20’
Between Housings: 20’ 3”
Capacity: 20’ x 3/4” @ 11/16” Rake
Throat Depth (Gap): 15”
Blade Size: 1-1/8” x 5”
Rake Angle: 11/16”/Ft.
Standard Strokes Per Minute: 22 to 5 SPM *
Ram Speed – Load Down: 120” / Min, Load Up: 258” / Min
No. of Hydraulic Holddowns: 23
Holddown Force: 73 Tons
Distance Under Holddowns: 1”
75 HP motor, Wired 460/3/60
Can be seen under power. Buyer responsible for removal.
Approx Weight - 89,600 lbs.
Dimensions - 25’W x 8.5’D x 9’H
Four standard front gauge support arms
Upgraded to 40% increase in ram speed
Extra foot switch with selector
Air cooled oil cooler
12' std. extension squaring arm with one solid stop
60" Power Back Gauge With Hinged Angle Long Scrap Chute
Light beam
Shearing gage
Oil reservoir heater
Air operated ball transfers in Table
Back piece support
TERMS:
Location Nevada - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment. Buyer responsible for loading and transport to their facility. Immediate availability, subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
