BOSCHERT QUATTRO 1500 CNC PUNCH
Have one to sell?
ConditionUsed
1 available
Main Features

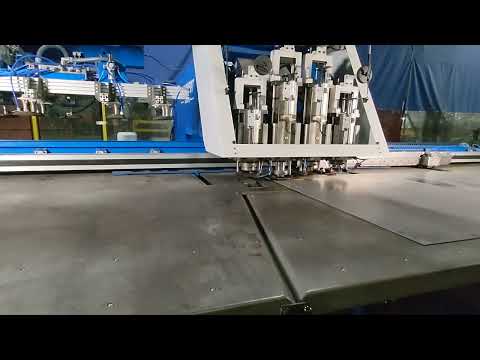

- Four Punching Heads, 36 tons each, Trumpf Style Tooling
- 5’ x 10’ sheet size
- Fully automatic loading and unloading of 5’ x 10’ x up to ½” thick sheets
BOSCHERT QUATTRO 1500 with Fully Automatic Sheet Loading & Unloading System (2 Available!)
Brand - Boschert
Model - QUATTRO 1500
Work Range - 60” x 120”
Maximum punching force - 36 Tons
Tooling - Trumpf
Condition: Used/Like New
Warranty - Yes
Availability - Immediate (2)
Year - 2022
Working range without repositioning - 60” x 120”
Maximum punching force - 36 Tons
Type of tooling used - Trumpf
Maximum punch diameter - 4.1” or any shape within
Maximum material thickness – standard clamps (Option: 0.500”) - 0.250”
Maximum weight of sheet in clamps - 880 lbs.
Maximum stroke length (Programmable) - 0 - 3.54”
Maximum strokes per minute - 400 spm
Positioning accuracy - +/- 0.002”
Positioning repeatability - +/-0.001”
Positioning speed (adjustable)
X – Axis Maximum - 2,350 ipm
Y – Axis Maximum - 1,100 ipm
Tool change time, Manual - 15 seconds
Height of table above floor - 35”
Approximate floor space - 26.5’LR x 21.5’FB x 83”H
Hydraulic oil reservoir capacity - 42 gallons
Electric motor for hydraulic system - 15 HP
Approximate weight of machine - 35,000 lbs.
Color - RAL 5017 Blue
Connected voltage - 80/3/60
Working range without repositioning - 60” x 120”
Maximum punching force - 36 Tons
Type of tooling used - Trumpf
Maximum punch diameter - 4.1” or any shape within
Maximum material thickness – standard clamps (Option: 0.500”) - 0.250”
Maximum weight of sheet in clamps - 880 lbs.
Maximum stroke length (Programmable) - 0 - 3.54”
Maximum strokes per minute - 400 spm
Positioning accuracy - +/- 0.002”
Positioning repeatability - +/-0.001”
Positioning speed (adjustable)
X – Axis Maximum - 2,350 ipm
Y – Axis Maximum - 1,100 ipm
Tool change time, Manual - 15 seconds
Height of table above floor - 35”
Approximate floor space - 26.5’LR x 21.5’FB x 83”H
Hydraulic oil reservoir capacity - 42 gallons
Electric motor for hydraulic system - 15 HP
Approximate weight of machine - 35,000 lbs.
Color - RAL 5017 Blue
Connected voltage - 80/3/60
Included optional equipment:
Extra heavy-duty X-axis for 400kg sheet capacity
Trumpf locking die holders for each station
High speed hydraulics with oil chiller
Vacuum slug removal
Automatic tool lubrication
Extra clamps
Ball supports in the table
Pneumatic material clamps
Safety light barriers around machine
Automatic repositioning

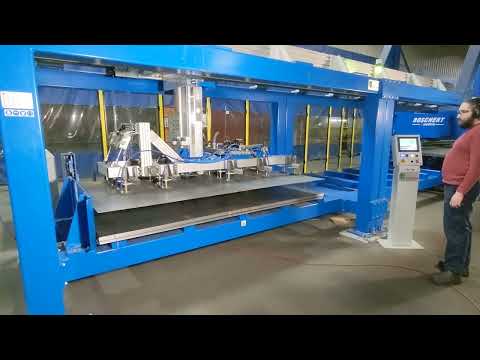

Pneumatic loading system:
Heavy duty design
Fully integrated with the punching machine
Capacity to load 450kg sheets
Control Features:
CNC software: Boschert graphic programming
Control display: TFT 10.4” color display
50 part program storage capacity in control memory
Extended storage device with capacity of approximately 100,000 programs (256mB) on hard drive and the included SD card. In addition, there is a USB port at the operator pendant.
Includes LAN connection easily integrated to your computer network.
Automatic stroke and part counter
Automatic “clamp find” function
Automatic referencing upon start-up
Both axes move simultaneously with programmed priority for either axis
Tooling list capacity of 500 tools with graphic support
Automatic punch power control
—-
Canned cycles including single hole, row of holes, hole circle, mirror image, Notching (up to 3 steps), Rectangles, Mirror image, Zoom, Remove waste, Sub-programs, Bolt-hole circle, Nibble circle, Matrix of holes, Ellipse, “V” belt shapes, Contour program (Rotation station only), Piece counter - Engraving
Warranty: Full one-year parts and labor warranty against defects in material or workmanship.
Location Illinois:
