UNI-HYDRO 5624 | Ironworkers

Description

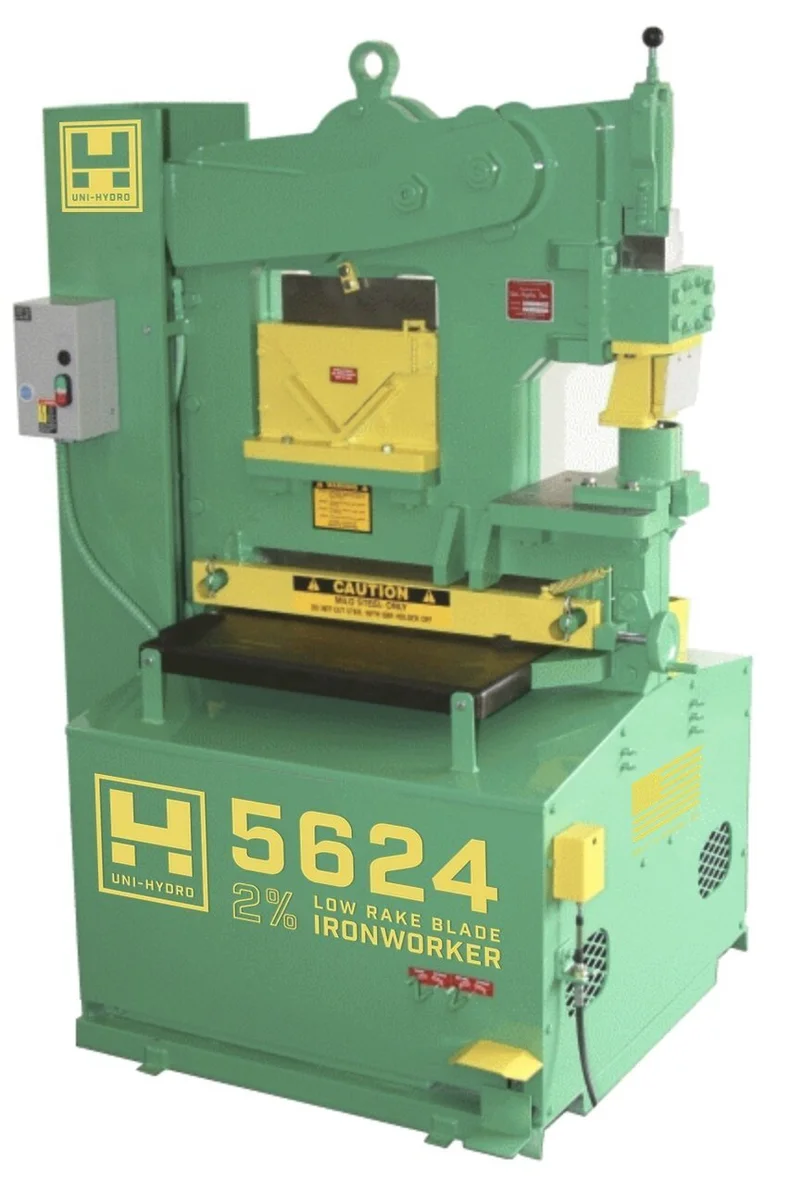

In building the 5624 Chuck Dvorak took up his own challenge to design a 1/2” x 24” flat bar shear that could achieve virtually perfect shearing, with a blade rake as close to zero degrees as possible. The result was the Uni-Hydro Model 5624, featuring a 2 degree low rake blade and the highest quality shear for any hydraulic ironworker that has ever been produced. No other hydraulic ironworker can match the 5624’s capability of shearing 1/2” x 24” on 2 degrees of rake, with such minimal distortion over 24”. This machine will do great in small fab, farm and sheet metal shops.

FEATURES:
- Manual Punch Aligner
- 9″ Open Throat Punch with 56-ton capability
- 24″ Bar Shear with Four Sided Blades, with 2 degrees of rake
- Bar Shear Hold-Down can be Fixed or Adjustable
- Full Up & Down Stroke Control
- Built for Forklift Handling
- Magnetic Starter for Safety & Reliability
- 1 Phase or 3 Phase Motor
