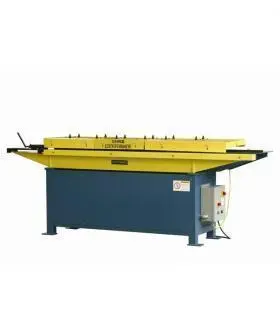

Lockformer Transverse Duct Connector (TDC) Roll Former | Model TDC V (12 Station) has 12 forming stations with two outboard positions (left and right) but no inboard position and produces transverse duct connector (TDC) flanges at speeds of up to 50 feet per minute.
Brand: Lockformer
Model: TDC-V (12 Station)
Type: HVAC Rollformer
Capacity: 18-24 for TDC, 22 Gauge for optional clip rolls
Depth of pocket: 1-7/8" for TDC and 2 1/8" for Clip
# Stations: 12
Speed: 50 FPM
Motor: 7.5 PH
Approx Dimensions: Length: 137” x Width: 38” x Height: 48”
Passline: 33”
Weight: 2,800 lbs.
Famous Lockformer quality construction with an industrial motor, high precision bearings, heavy duty three zone chassis head-plate construction, hardened and ground roll shafts all protected with Lockformer’s top-quality primer and paint finish.
** Optional rolls are available for 22 GA TDC Clip production.
TERMS:
FOB FACTORY, Cedar Rapids, IA, Includes Manufacturer’s 1-Year Warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
