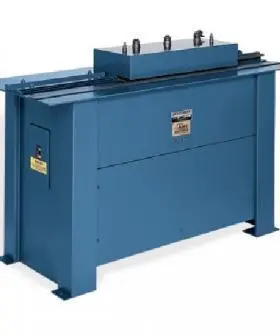

Pittsburgh Lock Model 18
Have one to sell?
New
The 14, 16 and 18 gauge Pittsburgh rollforming machines have 7 forming stations with two forming positions. One inboard position forms the Pittsburgh lock; and one auxiliary or outboard position has the capability of forming 1 of 8 different profiles depending on which auxiliary roll set is ordered.
Brand - Lockformer
Model - LK-18
Type - Pittsburgh Lock Model 18
Capacity - 18–22 gauge
Depth of Pocket / Size - 3/8” (Uses approximately - 1-1/8" of material)
Other - Width of hammer-over edge adjustable up to 3/8". Extended shafts for mounting auxiliary rolls.
Speed 40–45 feet per minute
Motor / Voltage - 2 hp, 230/460 volts, 60 cycle, 3 phase, A.C. 1,800 RPM.*
*Other motors available upon request
Dimensions - Length 58.5” x Width: 24” x Height: 41"
Passline - 34"
Weight - 750 lbs.
TERMS:
FOB FACTORY, Cedar Rapids, Iowa - Includes Manufacturer’s 1-Year Warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
