Lockformer Round & Oval Pipe Machine
Have one to sell?
New

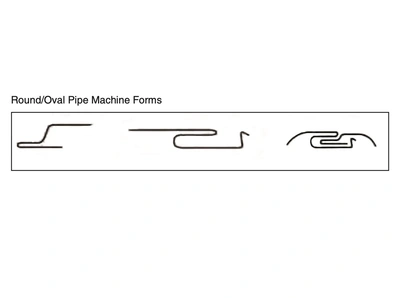

Available in either 7-station or 9-station (for pre-curl) machines which fabricate both male and female forms for Reeves-type snap lock. Each lock is formed on flat sheets with no restrictions on the diameter of the finished pipe.
Brand: Lockformer
Model: ROUND/OVAL PIPE MACHINE 7 STATION
Capacity - 24-30 gauge
Depth of Pocket/Size - Uses approximately 1-9/16" material both sides
Belt Type - V-belt
Speed - 35 FPM
Motor/Voltage - 2 H.P., 230/460 volts, 60 cycle, 3 phase, 3,600 RPM, Manual switch, Other motors available.
Dimensions:
Length - 48" x Width - 24" x Height - 41"
Passline - 34"
Weight - 750 lbs.
