LOCKFORMER VULCAN PLUS PLASMA
Have one to sell?
New
Simply the best…..Worldwide. The Plus is the benchmark in plasma cutting systems - now featuring the new “Flex-Ability” technology.
A superior product brand because it has earned the reputation for unrivaled quality, performance and value.
Renowned for its unequaled structural integrity, the Vulcan 2900 outperforms any CNC plasma cutting system in the world…..state-of-the-art in every detail and component.

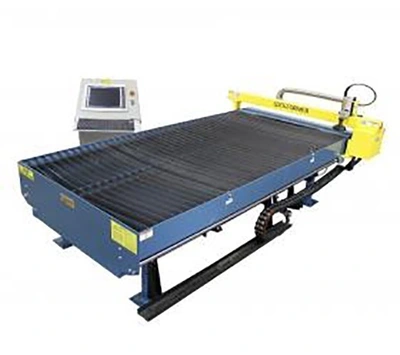

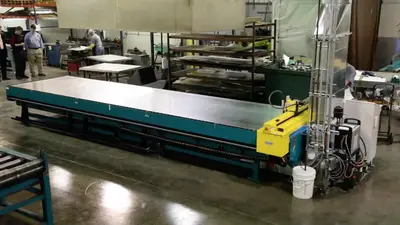

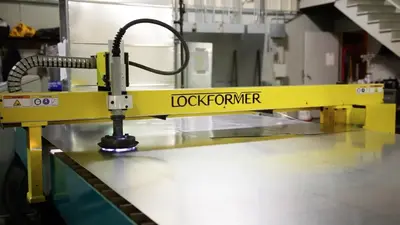

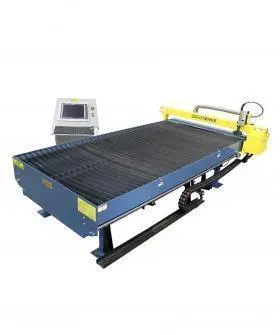

The Lockformer VulcanPlus Sheet Metal Plasma Cutting System is the benchmark in plasma cutting systems. Loaded with features for unmatched accuracy and precision, this system also has a capacity of 3/8″ and 1/2″ mild steel with a positioning speed of 3,000 IPM Max — the fastest cutting, positioning, and traversing times in the industry.
The fixture-welded 3″ x 3″ steel tube construction ensures the frame will be as perfectly aligned today it will be years from now. The virtually indestructible plug-in components are standard and everything is protected — motors and drive systems are never exposed. Plus, the three (3) servo motors, planetary gears, and single-shaft belt are the most accurate in the industry.
Model - Lockformer VulcanPlus Sheet Metal Plasma Cutting System
Software
Vulcan Windows 10 HVAC
Computer System
Office PC with 19″ Monitor & Printer
Machine Control
Lockformer B&R Industrial Grade cutting table controller with 7590 CNC-TS and 15" Color Graphic Industrial Touch Screen
Digital Drive devices
Manual Speed increase/decrease override
Kerf compensation
Auto home sense set o/o automatically
Automatic corner slow down
Brushless AC servo motors with resolver feedback
Remote safety stop switches and current limiting drives for safety
Cutting Unit

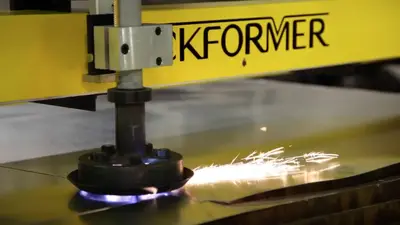

Standard: Hypertherm PowerMax 45
Optional: Hypertherm PowerMax 65
Cutting Area
5’x10′ Standard – 5’x20′ Optional
Cutting Capacity
PowerMax 45: 3/8″ Mild Steel
PowerMax 65: 1/2″ Mild Steel
Table Capacity
1,000 pounds (5’x10′ model)
Positioning Speed
3,000 IPM Max.
Options
Upgrade to Powermax 65 available
Vulcan HVAC Software, office computer and (2) inkjet printers available
VulcanPlus Startup Assistance & Training – 3 Day Package available
Additional days for on-site assistance or training time are available at Seller’s usual and customary daily service rates plus travel & living expenses.
Positioning Speed
3,000 IPM Max.
Cutting Speed
Based on Material
MACHINE WEIGHT
2,700 pounds
