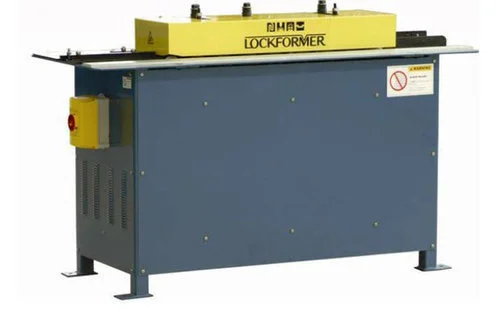

The Button Punch Snap Lock Machines form a two piece seam that greatly simplifies ductwork assembly. The male seam is a button, the female seam is a lock and the two snap together for a flush corner. These machines can form 20 to 26 gauge sheet metal into female locks on the inboard and button punched right angle flanges on outboard rolls at speeds of 60-65 fpm and are available in seven and nine forming station machines. Not only do these locks assemble twice as fast as traditional methods, but because the two pieces nest, they are easier to transport too.
Brand - Lockformer
Model - Button Punch Snap Lock (BPSL)
Type - Roll Former
Capacity - 20–26 gauge
Depth of Pocket / Size - Uses approximately 1-3/4" material
Speed - 60 - 65 feet per minute
Motor - 3 HP (230/460 volts, 60 cycle, 3 phase, A.C. 3,600 RPM)*
Dimensions58.5" x Width: 24" x Height: 41"
Passline: 34"
Weight: 725 lbs.
* Other motors available upon request
Standard with Lockformer quality construction, these machines have industrial motors, high precision needle-type bearings, heavy 3/4″ chassis plate, case-hardened and ground roll shafts, and arc-welded steel stands protected with Lockformer’s top-quality primer and paint finish. Alternate fittings are easily accessible from a main transmission bearing lubrication panel.
TERMS:
FOB FACTORY, Cedar Rapids, IA, Includes Manufacturer’s 1-Year Warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
