LOCKFORMER TDC V 16 | Roll Formers
Have one to sell?
New
The TDC® V Rollformer has 12 forming stations and produces TDC® flanges at speeds of up to 50 feet per minute!
This is the only transverse duct connector machine on the market certified to comply with SMACNA Duct Construction Standard (DCS) T-25a based on actual laboratory tests across the full range of water gauges.
Famous Lockformer quality construction with an industrial motor and gear box; high precision bearings; heavy duty two zone chassis; plate head construction; hardened and ground roll shafts all protected with a cabinet finished with Lockformer’s top-quality primer and paint finish. Optional rolls are available for TDC Clip or Pittsburgh lock production.

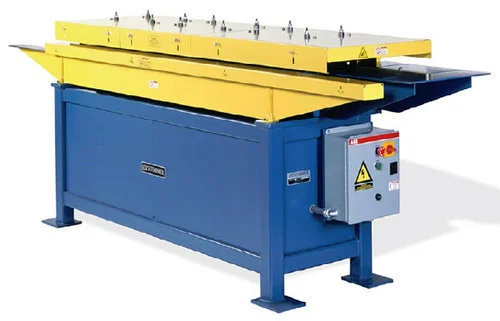

Lockformer Transverse Duct Connector (TDC) Roll Former | Model TDC V16 has 16 stations with two (2) outboard and no inboard position and produces transverse duct connector (TDC) flanges at speeds of up to 50 feet per minute. This is the only transverse duct connector machine on the market certified to comply with SMACNA Duct Construction Standard (DCS) T-25a based on actual laboratory tests across the full range of water gauges. Famous Lockformer quality construction with an industrial motor and gear box; high precision bearings; heavy duty two zone chassis; plate head construction; hardened and ground roll shafts all protected with a cabinet finished with Lockformer’s top-quality primer and paint finish. Optional rolls are available for TDC® Clip or Pittsburgh lock production. Also features extended shafts for mounting auxiliary rolls.
Brand: Lockformer
Model: TDC V-16
Type - Rollformer
Stations - 16
Capacity -
16-22 gauge for transverse duct connector (TDC)
22 gauge for optional Clip Rolls
Depth of Pocket -
1-7/8" for TDC
2-1/8" for Clip
Forming Speed - 50 FPM
Motor - 7.5 HP (230/460/3ph) 1,800 RPM
Table Height - 33”
Dimensions (L x W x H) - 137″ x 38″ x 48″
Shipping Weight - 2,800 pounds
Options Available:
TDC Clip Rolls Inboard
16Ga Pittsburgh Rolls Outboard
1" Standing "S" Cleat Inboard
3N1 Rolls
TERMS:
FOB Factory, Cedar Rapids, Iowa - Includes Manufacturer’s Warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
Manufacturer's Warranty:
https://mestekmachinery.com/service-and-support/warranty/
