HE&M H90A-1 - 12.75" x 12.75"
Have one to sell?
New

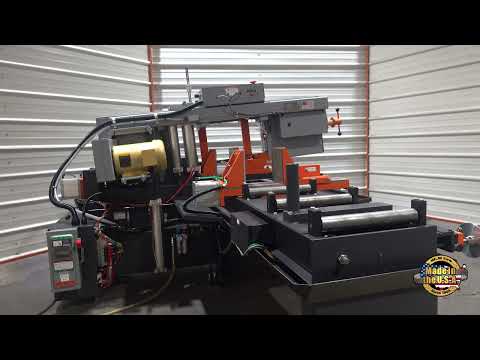

The HE&M H90A-1 is an incredible horizontal bandsaw with a track record of exceptional performance since 1964. The design is basic, featuring standard parts you can get at local supply houses, and a mechanical control that is built to stand the test of time. This entry level saw is perfect for any machine shop that needs accurate one-off cuts or production cutting of high-tolerance blanks for feeding machine centers. Made in the USA.The H90A-1 offers accurate cuts on small solids and shapes. It is perfect for cutting multiple parts of the same length up to 24” long automatically. This simple to use scissor-type band saw has a long track record for years of reliable service.
Technical Highlights
Main Capacity: 0-12.75" W x 0-12.75" H
Bar-feed: 0-24" (Stroke Air - Single Index)
Blade: 12' 10" L x 1" H x .035"
Motor: 3 HP
Hydraulic Motor: N/A
Operation: Automatic
Brand - HE&M Saw
Type - Horizontal Bandsaw
Condition - New
Capacity - 12.75" W x 12.75" H
Blade Size - 1"
Motor - 3 HP
Square Capacity - 0-12" (Square)
Round Capacity - 0-12.75" (Diameter)
Bar-feed - 0-24" (Stroke Air - Single Index)
Operation Type - Automatic
Bandsaw Blade Speed - 0-400 FPM
Control Console on Top of Saw - Bi-Function Control
18" Discharge Support
Vise - Adjustable Main & Feed
Adjustable Clamping Force
2 Hold Down Fixtures
Guide Arm - Manual Adjustment
Variable Blade Speed w/ LED Readout
Carbide Blade Guides
Manual Blade Tension
Adjustable Feed Rate
Adjustable Cutting Pressure
Coolant System - Flood w/ Wash-Down Hose
Vertical Alignment Bar on Bar-Feed
Blade Brush
Broken Blade Function
Out-of-Stock Function
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator)
SUPPORT
1 Year Parts Warranty
Spare Parts Kit & In-Depth Manual
Free Telephone Technical Support
OPTIONS AVAILABLE:
Vise - 3rd on Feed
Interlocking Vise Jaws
Top Clamp - Reduced Capacity Main Vise
Top Clamp - Reduced Capacity Feed Vise
Light Clamping Pressure
24" Solid Discharge Table
Spray Mist Lubrication
5' Idle Roller Stock Table
10' Idle Roller Stock Table
Single-Phase Voltage
