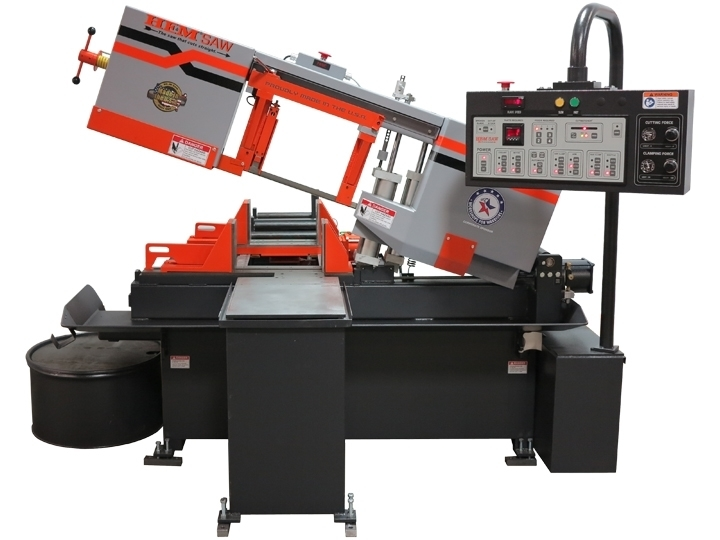

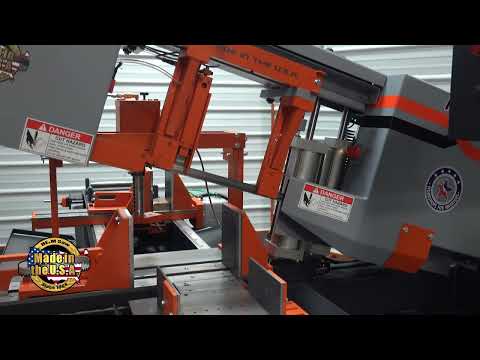

HE&M H90A-4 - 12.75" x 12.75"
Have one to sell?
New
The H90A-4 offers up to 4 indexes 24” each and will cut up to 999 same-length parts. The H90A-4 gives fast accurate cuts on small solids and shapes. It is perfect for cutting multiple parts of the same length that are shorter or longer than 24”.
Technical Highlights
Main Capacity: 0-12.75" W x 0-12.75" H
Bar-feed: 0-24" (Stroke Air - 4 Index)
Blade: 12' 10" L x 1" H x .035"
Motor: 3 HP
Hydraulic Motor: N/A
Operation: Automatic
Brand: HE&M SAW
Model: H90A-4
Type: Horizontal Band Saw
Operation: Automatic
Rectangular Capacity 0-12.75" W x 0-12.75" H
Blade Size 12' 10" L x 1" H x .035"
Square Capacity 0-12" (Square)
Round Capacity 0-12.75" (Diameter)
Bar-feed 0-24" (Stroke Air - 4 Index)
Motor 3 HP
Hydraulic Motor N/A
Power Source Air
Weight N/A
Blade Type Bandsaw
Bandsaw Blade Speed N/A
Bundle Cut? Yes
Easy View Console - All Function Control
24" Solid Discharge Table - Bolts to Saw
Vise - Adjustable Main & Feed
Adjustable Clamping Force
2 Hold Down Fixtures
Guide Arm - Manual Adjustment
Passive "Cut Watcher®" System
Variable Blade Speed w/ LED Readout
Carbide Blade Guides
Manual Blade Tension
Adjustable Feed Rate
Adjustable Cutting Pressure
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Vertical Alignment Bar on Bar-Feed
Broken Blade Function
Out-of-Stock Function
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator)
OPTIONS AVAILABLE:
Vise - 3rd on Feed
Interlocking Vise Jaws
Top Clamp - Reduced Capacity Main Vise
Top Clamp - Reduced Capacity Feed Vise
Light Clamping Pressure
Spray Mist Lubrication
5' Idle Roller Stock Table
10' Idle Roller Stock Table
Single-Phase Voltage
