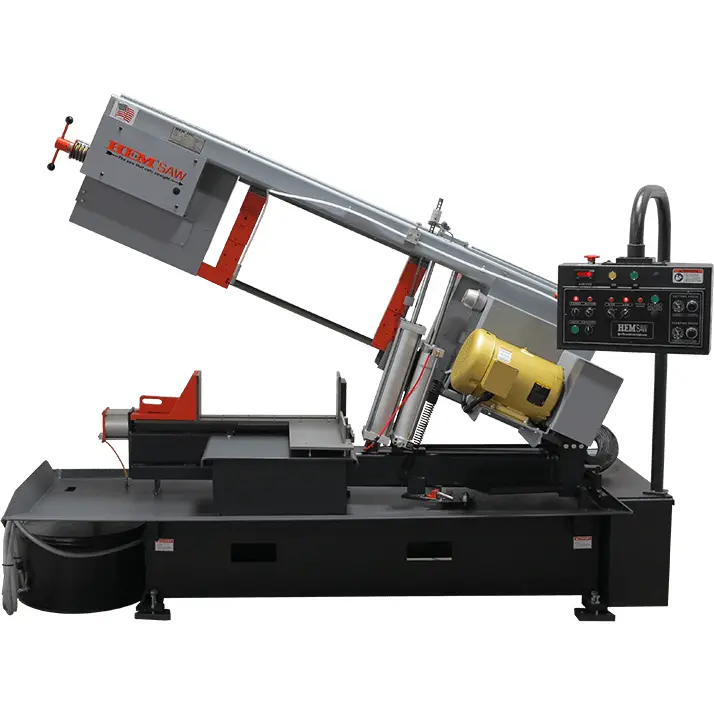

HEM CYCLONE M Horizontal Pivot Band Saw
Have one to sell?
New
The Cyclone M miters to 60ᵒ one direction, is ideal for cutting solids and structural shapes with a 1¼” blade and 7½ HP motor. The control console, mounted on a swing arm, allows semi-automatic sawing and adjustment of Cutting Force, Adjustable Clamping Pressure, and push button Blade Speed.
Technical Highlights
Main Capacity: 0-22" W x 0-16" H
Bar-feed: N/A
Blade: 16' 0" L x 1.25" H x .042"
Motor: 7.5 HP
Hydraulic Motor: N/A
Operation: Semi-Automatic
The Cyclone M miters to 60ᵒ one direction, is ideal for cutting solids and structural shapes with a 1¼” blade and 7½ HP motor. The control console, mounted on a swing arm, allows semi-automatic sawing and adjustment of Cutting Force, Adjustable Clamping Pressure, and push button Blade Speed.
Technical Highlights
Main Capacity: 0-22" W x 0-16" H
Bar-feed: N/A
Blade: 16' 0" L x 1.25" H x .042"
Motor: 7.5 HP
Hydraulic Motor: N/A
Operation: Semi-Automatic
Imperial
| Rect-Cap (H) | 16" |
| Rect-Cap (W) | 22" |
| Power | 7.5 hp |
| Type (Auto, Manual, Semi) | Semi |
| Blade Width | 1.25" |
| Blade Thickness | 0.042" |
| Blade Length | 16' |
