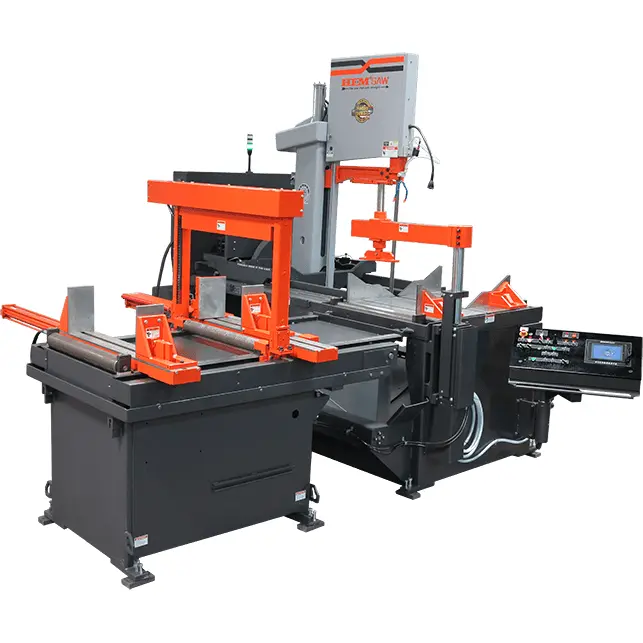

HE&M VT140HA-60-CTS Vertical Band Saw
Have one to sell?
ConditionNew
New
The V140 and VT140HA-60-CTS are heavy-duty band saws only varying from a vertical blade orientation. The touch screen is mounted in a swing-away console. Jobs are stored in the PLC for later recall and use. A hydraulic 48” bar-feed standard; 48” or 120” servo-driven twin-screw bar-feeds are optional.
Brand: HE&M Saw
Model: VT140HA-60-CTS
Type: Vertical Band Saw
Main Capacity: 0-22" W x 0-30" H
Bar-feed: 0-48" (Stroke Hydraulic Motor - Multiple Index)
Blade: 1.5" x 20' 0" L x .050"
Motor: 10 HP
Hydraulic Motor: 5 HP
Operation: Automatic
Cantilever: 4 Degrees Fixed
** Formal Factory Quote Required For Pricing
Swing-Away Control Console w/ 8" Touch Screen
Computer Controlled Feed System
Power Programmable Tilt from Touch Screen
Vise - Full Stroking Main & Feed
Adjustable Clamping Force
Carbide Blade Guides
Passive "Cut Watcher®" System
Electronic Controlled Traverse (Controls Feed Rate & Cutting Force)
Forward Cut Stop
Idle Base Rollers - 1 Each Side of Base
Powered Blade Tension
Guide Arm - Powered
Variable Blade Speed w/ Readout on Touch Screen
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Broken Blade Function
Out-of-Stock Function
Blade Saver
Blade Change Interlock
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
Optional Features:
0-48" Stroke Servo Twin Ball-Screw Bar-Feed
0-120" Stroke Servo Twin Ball-Screw Bar-Feed w/ 3rd Vise
Bar-Feed Filler Plates
Swing-Away Top Clamp - Main Vise
Top Clamp - Full Capacity Feed Vise
Top Clamp - Reduced Capacity Main Vise
Top Clamp - Reduced Capacity Feed Vise
Vise - 2nd Main
Vise - 3rd on Feed
Laser Light System
Chip/Swarf Removal System - Chip Conveyor
Chip/Swarf Removal System - Manual Hand-Crank Chip Conveyor
Power Raised Lift Up Rollers
Right to Left Feed Direction
Spray Mist Lubrication
Pedestal Mounted Control Console
Cold Weather Package
Hydraulic Tank Heater
5' Roller Discharge Table
10' Roller Discharge Table
10' Clutched Powered Discharge Table
5' Idle Roller Stock Table
10' Idle Roller Stock Table
10' Powered Roller Stock Table
Terms:
FOB Factory Pryor, OK USA (Build to Order) - Includes Manufacturer’s 1-Year Warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
