Roto-Die ’s CB-30 Cleat Bender is an economical, pneumatic bender for bending cleat on duct and fitting or similar applications that utilize a cleat type connection, up to 20 gauge sheet metal thickness. Unlike the competition, the CB-30 cleat bender requires no electricity, only a compressed air line connection. The stainless steel top resists rust to insure years or service. Unlike competitors machines, the CB-30 has 15 forming fingers, which accommodates more discrete combinations of duct or fitting sizes. Also, with the open ended design, the operator can notch the sheet to make cleats of more than 30” in length by bending in multiple steps
Model - CB-30
Capacity - 20 gauge and lighter
Type - Open end cleat bender
Bend Length - 3” - 29-1/2”
Bend Width - 7⁄16” through 1⁄2” Present
Table Height - 36”
Strokes Per Minute- 0-50
Air Consumption
< 0.5 cu ft/cycle at 100 P.S.I
Weight - 500 lbs.
Dimensions - 40“ L x 47” W x 34” H

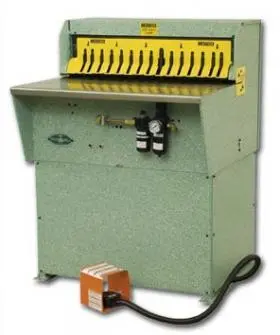

The Roto-Die CB-30 Open End Cleat Bender quickly forms consistent cleats with no setup or adjustment.
Pneumatically Operated
Wide jaws allow forming in 1/2″ increments
Adjustable cleat settings
Front-mounted quick-release valves
Large, stainless steel feed table resists rust
Built in America
Backed with a full One-Year Warranty
