IOWA PRECISION EMHP 3/4/5 | Elbow Machines
Have one to sell?
$157,490.00 USD
New

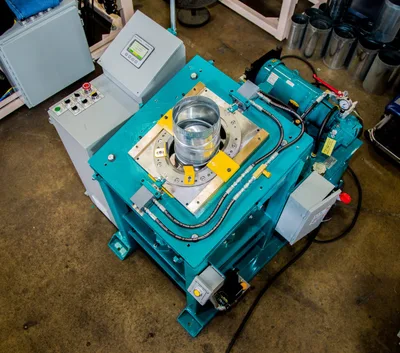

Adding to our line of machines is the Automatic Elbow Machine. This precision machine produces high quality straight, articulated elbows from tube blanks, which can be hand turned to any angle between 0° and 90° for various elbows. The control panel is angled for easier operator use.
Brand: Iowa Precision
Model: EMHP 3/4/5
Type: Adjustable Elbow Machine
Capacity: Gauge - .0125-.020 - (0.32 to 0.51 mm)
Tube Diameter: 3" (76.2 mm) — 5" (127 mm)
Head Angle: 15˚
Other: 2 piece - 30° - 3 piece - 60° - 4 piece - 90°
Motor / Voltage: 5 hp - 220/440/3/60
Dimensions: Length: 60" x Width: 36" x Height: 50"
Weight: 1,550 lbs.
