IOWA PRECISION EMHP 6/7/8 | Elbow Machines
Have one to sell?
$157,460.00 USD
New

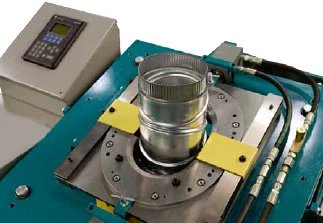

Adding to our line of machines is the Automatic Elbow Machine. This precision machine produces high quality straight, articulated elbows from tube blanks, which can be hand turned to any angle between 0° and 90° for various elbows. The control panel is angled for easier operator use.
Brand: Iowa Precision
Model: EMHP 6/7/8
Type: Adjustable Elbow Machine
Capacity: Gauge - .0125-.024
Tube Diameter: 6" — 8"
Head Angle: 15˚
Build-out: 2 piece - 30°, 3 piece - 60°, 4 piece - 90°
Motor / Voltage: 5 hp - 220/440/3/60
Dimensions: L 50" x W 36" x H 50"
Weight: 1,550 lbs.
Iowa Precision Automatic Adjustable Elbow Machines produce 2-piece 30˚, 3-piece 60˚, or 4-piece 90˚ adjustable elbows from galvanized steel tubes for tube diameters anywhere from 3″ to 24″. The tubes are manually inserted in the machine by the operator who then presses the cycle start button and the machine automatically performs all the operations necessary to form the elbow. These elbow machines incorporate a programmable logic control to handle the sequence logic required for machine operation and a servo control along with a brushless DC servomotor to position the elbow for the individual gores. The operator enters elbow data into the control system via an operator terminal; simply entering the starting point on the tube, the spacing between each gore and the breed distance for each gore. When the machine is placed in the run mode, the push tube automatically moves to the starting point for the elbow, the operator then places the tube over the tooling in the proper orientation and presses the cycle start button to make the elbow.
Adding to our line of machines is the Automatic Elbow Machine. This precision machine produces high quality straight, articulated elbows from tube blanks, which can be hand turned to any angle between 0° and 90° for various elbows. The control panel is angled for easier operator use.
Brand: Iowa Precision
Model: EMHP 6/7/8
Type: Adjustable Elbow Machine
Capacity: Gauge - .0125-.024
Tube Diameter: 6" — 8"
Head Angle: 15˚
Build-out: 2 piece - 30°, 3 piece - 60°, 4 piece - 90°
Motor / Voltage: 5 hp - 220/440/3/60
Dimensions: L 50" x W 36" x H 50"
Weight: 1,550 lbs.
Iowa Precision Automatic Adjustable Elbow Machines produce 2-piece 30˚, 3-piece 60˚, or 4-piece 90˚ adjustable elbows from galvanized steel tubes for tube diameters anywhere from 3″ to 24″. The tubes are manually inserted in the machine by the operator who then presses the cycle start button and the machine automatically performs all the operations necessary to form the elbow. These elbow machines incorporate a programmable logic control to handle the sequence logic required for machine operation and a servo control along with a brushless DC servomotor to position the elbow for the individual gores. The operator enters elbow data into the control system via an operator terminal; simply entering the starting point on the tube, the spacing between each gore and the breed distance for each gore. When the machine is placed in the run mode, the push tube automatically moves to the starting point for the elbow, the operator then places the tube over the tooling in the proper orientation and presses the cycle start button to make the elbow.
