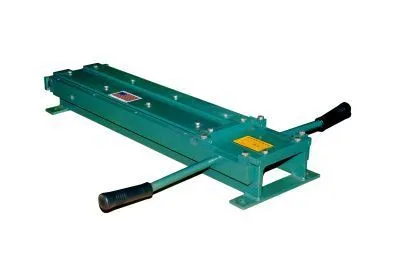

For real production! This beefy little 24 inch, two sided cheek bender is built to last. Bench mounted, this machine comes ready for service. Consistent bends are a certainty due to the two-way trunnion keeping the bending apron in position at the origin of the bend. Adjusts for 1/4" to 7/8" bends (6.35mm - 22.2mm).
Lockformer’s Manual Cheek Bender features a two-way trunnion that keeps the bending bar in position at the starting point to assure perfect bends throughout the entire length. Mounting bolts are included.
Machine Capacity:
Maximum material thickness: 30-20 gauge (0.4-1.0 mm) galv. steel
Depth of Pocket - 1/4″ to 3/4″
Bend Length - 29-3/4″ Maximum
Angles - 1° to true 90°
Dimensions - 34″ x 8-1/2″ x 4″, 95 lbs
