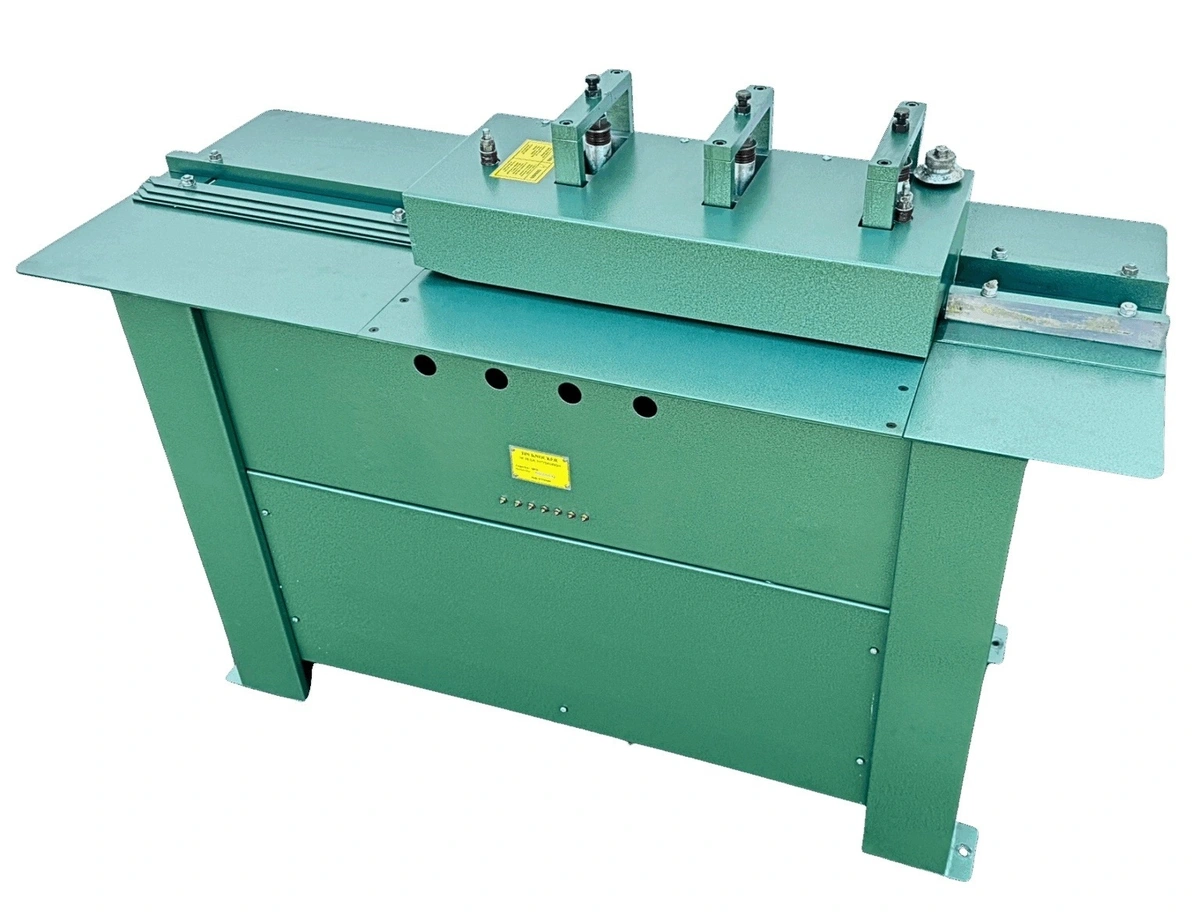

IT COMES LOADED!!! The 16 gauge Pittsburgh Lock machine has 7 forming stations with 2 forming positions. One position forms the Pittsburgh Lock, while the outboard position has the ability of forming a number of other profiles, to include: Acme, Drive Cleat or 4 in 1 rolls (3/16” Right Angle Flange, 7/16” Right Angle Flange, Standing Seam and T-Connection. You don’t pay extra for the choice of opposing rolls, either. You get your choice of rolls opposite the Pittsburgh rolls.
Brand: Tin Knocker
Model: 16
Type Pittsburgh Rollformer
Material Capacity (Inboard Rolls): 16ga
Material Capacity (Outboard Rolls): 22-26ga
Motor: 3HP, 230V/3ph/60, 1ph Optional
Speed: 40-45 feet/minute
Pocket Depth: 3/8"-1/2", using 1-3/8" of material
Dimensions: 59”L x 24”W x 41”H
Weight: 650lbs

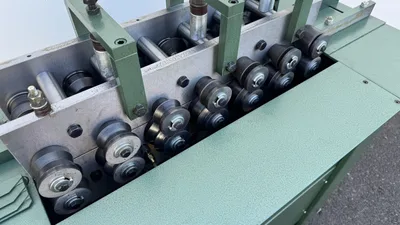

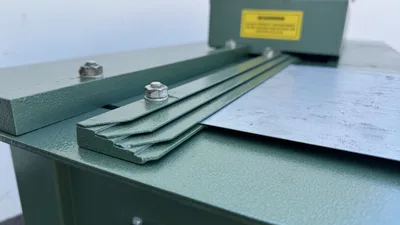

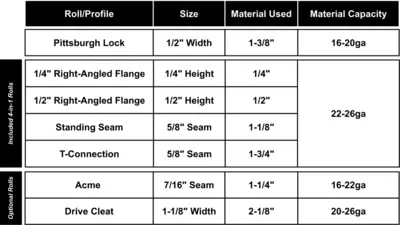

The Tin Knocker 16ga Pittsburgh Roll Former is versatile heavy-duty machine, designed to create multiple edge profiles via 7 forming stations and 2 forming positions. In one position, the inboard rolls form the Pittsburg lock. In the second position, the outboard rolls can create 4 different profiles via the 4-step gauge. Each step in the gauge creates a different profile, which include:
1. 1/4” right-angled flange
2. 1/2” right-angled flange
3. Standing seam
4. T-connection
The tooling to create these 4 different profiles is included and installed from the factory, making this an exceptionally versatile machine for fabricators. There are also additional rolls available to swap into the outboard position, allowing the creation of Acme and drive cleat profiles.
