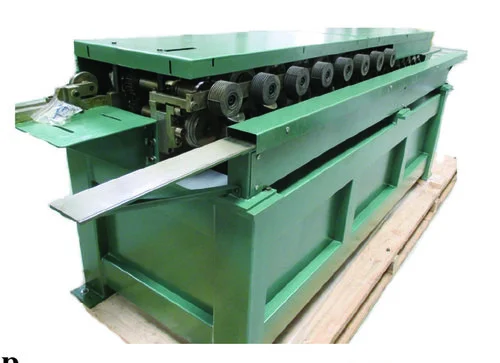

At last, an affordable, full service, high quality transverse duct connector machine!!! HERE’S THE BEEF! This 14 station roll former comes standard with TDC or TDF Rolls, Slitter and Clip Rolls outboard. This T-D-P roll former will roll sheet metal into leak proof, sealable TDC or TDF flanges at speeds of up to 50 fpm, automatically! Start saving time and money by forming your own TDC or TDF flanges – with their snap on corners – and eliminate spot welding altogether. Buyer must specify which set of transverse duct connector rolls is wanted on the machine (TDC or TDF). Slitting and Clip Rolls come on all TDP roll formers.
Capacity: T-D-P 18-24 ga.
T-D-P Uses approx. 1-7/8″ of material
T-D-P 50 feet per minute
T-D-P Clip (min. length 20″) 22 ga. 2-1/8″ 2 1/8″
Forming Sections: 14
Shaft Diameter: 1.25″
Passline: 38.625″
Forming Speed: 50fpm
Weight: 3450 lbs
Dimensions: 38 x 136.75 x 46 in
