DAKE SB-16 Drill Press
Have one to sell?
$2,225.00 USD
New

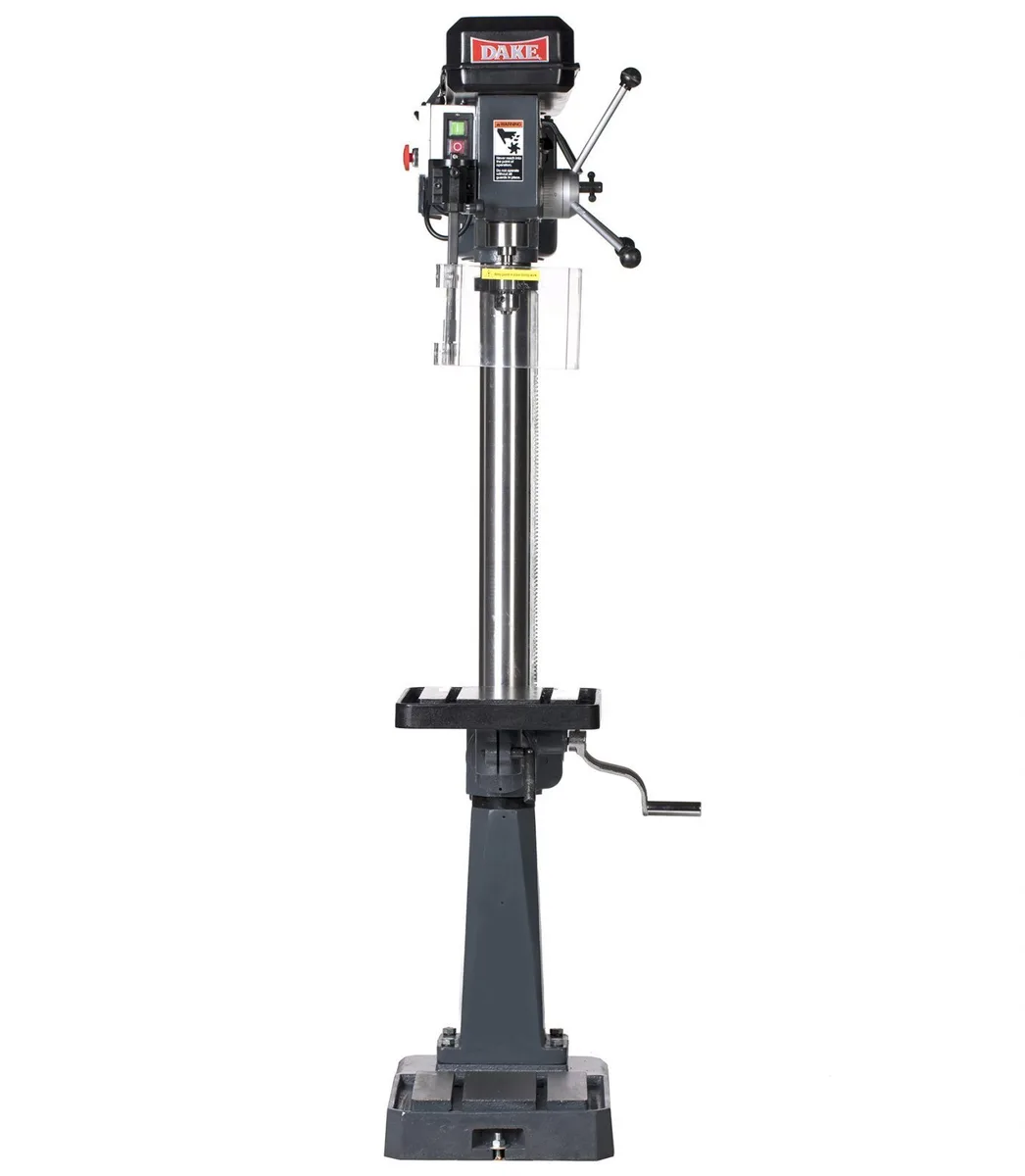

Floor model drill press featuring a locking handle hub, CE safety electrical package, a large diameter sturdy spindle, and massive cast head. Capable of quick bit changes and quick belt tension release for easy speed changes.
Brand: Dake
Model: SB-16
Type: Drill Press
Working Diameter: 14-1/8″
5/8″ Drill Capacity
Horsepower: 1/2
MT2 Spindle Taper
Number Of Speeds: 9
240-3,400 Spindle Speed Range
Motor: 110/220/440V
Electrics: CE 120V
Spindle Travel: 3-1/8″
Column Diameter: 3-1/8″
Table Depth: 11-3/4″
Table Width: 11-3/4″
Base Depth: 19-5/8″
Base Width: 12-1/2″
Spindle To Table: 28-1/2″
Spindle To Base: 49-1/4″
Overall Height: 64″
Weight: 230 lbs
A locking handle hub with convenient dial-in adjustment and an easy to read scale for fast, accurate, and repeatable depth setting changes
Large diameter sturdy spindle for rigid drilling has four bearing points for smooth operation
Bench and floor models both have machined table and base surfaces with t-slots for mounting and fixturing
Quick release belt tensioning for fast, easy speed changes
CE safety electrical package features push button on/off switch, emergency stop button, low voltage controls, thermal overload, and interlock safety switch for belt cover
Massive cast head, machined column, and sturdy cast base reduces vibration
Quick bit changes with standard Morse Taper (MT), common adaptors or standard keyed chuck
Handle has 3 spokes with spring return for precise operator control and ergonomic operation
Standard Equipment
1/2” Keyed chuck
Drift for bit removal
Plexiglas chip and chuck guard
Model Options
Optional Quick Release Drill Press Vice – Part No. 303322
Optional Drill Press Vice – Part No. 303321
