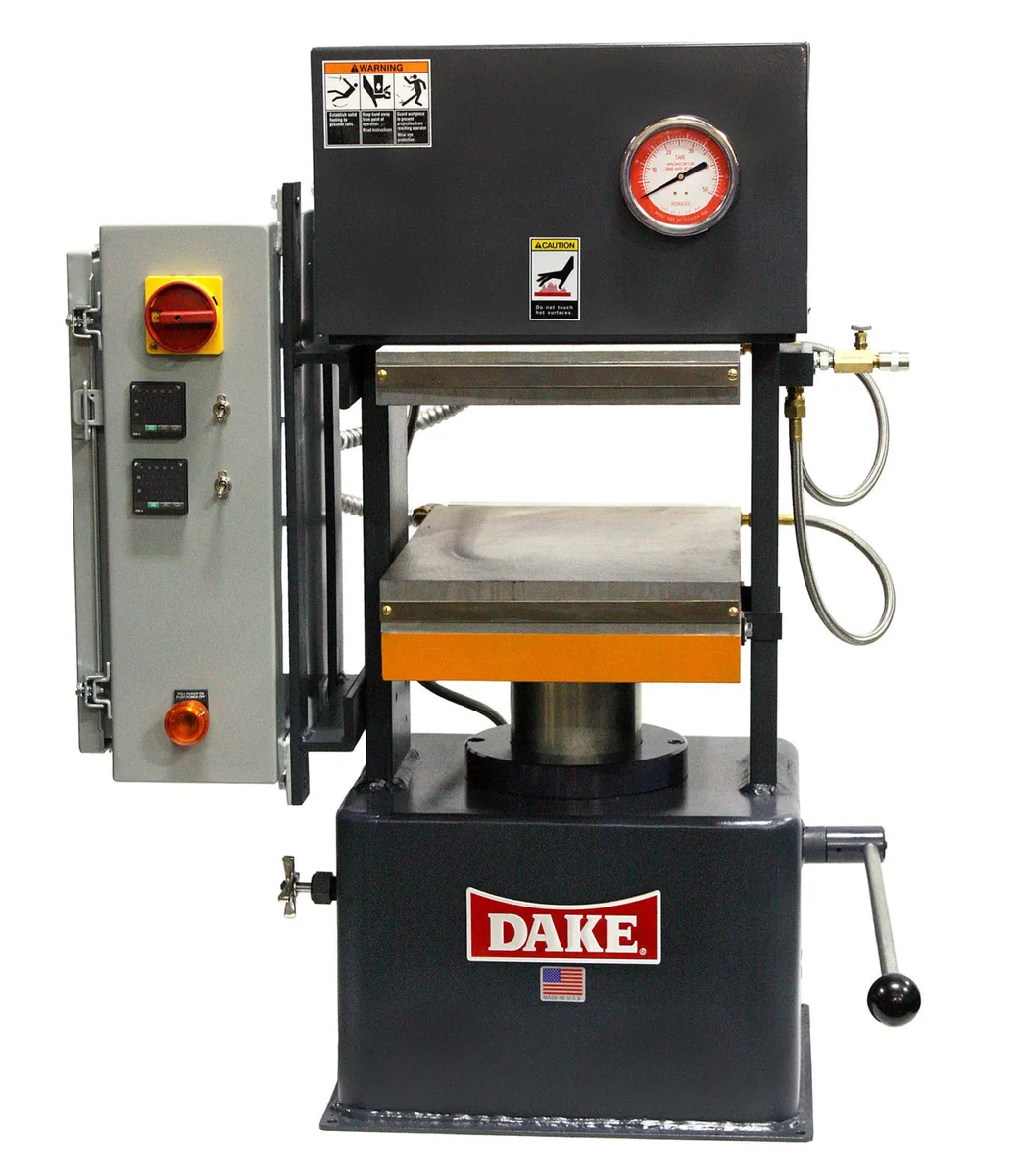

Laboratory press with electric platens, isolated control panel that stays cool to the touch, precise temperature control with separate controls for each platen, and a two position ram. Great for molding, laminating, testing, and more.
Brand: DAKE
MODEL NUMBER 44-250
Tonnage 50
Maximum Temp. 600° F
Watts Per Press 4,800
Voltage 220V/440V, 3-Phase
Amps 20
Number of Openings 1
Stroke 6"
Platens 12-½” x 12-½”
Daylight Between Each Platen 6" / 10"
Base Dimensions 18” x 16”
Overall Height 39”
Weight 825 lbs
STANDARD EQUIPMENT
Water Cooled Electric Platens
Precise Digital Temperature Control
2-Speed Hand Pump
FEATURES
Self-leveling, electrically cooled, precision ground steel platens are pre-wired into the control panel.
Heating elements are replaceable.
Unique dual acting pump provides a rapid advance of the ram.
Conversion of pump to high pressure-low volume output provides accurate control and easy operation.
Ability to hold pressure for extra long periods of time.
Release valve on side of the press enables operator to adjust the pressure accurately as well as accomplish gradual decompression or fast opening of the press.
Side mounted control panel.
Precise temperature control. Temperatures are accurately controlled from 100˚ to 600˚F.
Removable ram adaptor allows for greater daylight working height.
MODEL OPTIONS
944001 – Pedestal + $3,259
---
For compression molding, laminating, testing and more.
Electric platens: The self-leveling, electrically cooled, precision ground steel platens are pre-wired into the control panel. Heating elements are replaceable.
Hydraulic system: A unique pump design provides a rapid advance of the ram utilizing the high volume-low pressure portion of the pump. When the down stroke of the pump lever is used, the pump automatically converts to the high pressure-low volume output providing accurate control and easy operation. The carefully -constructed hydraulic system enables the press to hold pressure for extra long periods of time. The release valve on the side of the press enables the operator to adjust the pressure accurately as well as accomplish gradual decompression or fast opening of the press.
Control panel: A conveniently-located panel at the top of the press is isolated from the press and is cooled by an air space between the housing and the upper platen. All electricals are mounted on a common plaque for easy servicing.
Precise temperature control: Each platen has its own complete set of controls including adjustable thermoswitch, built-in thermometer, power switch and pilot light. Temperatures are accurately controlled from 100˚ to 600˚F.
Two position ram: A removable adaptor is placed between the self-leveling platen and the ram. By removing the adaptor, a greater daylight dimension is available.
