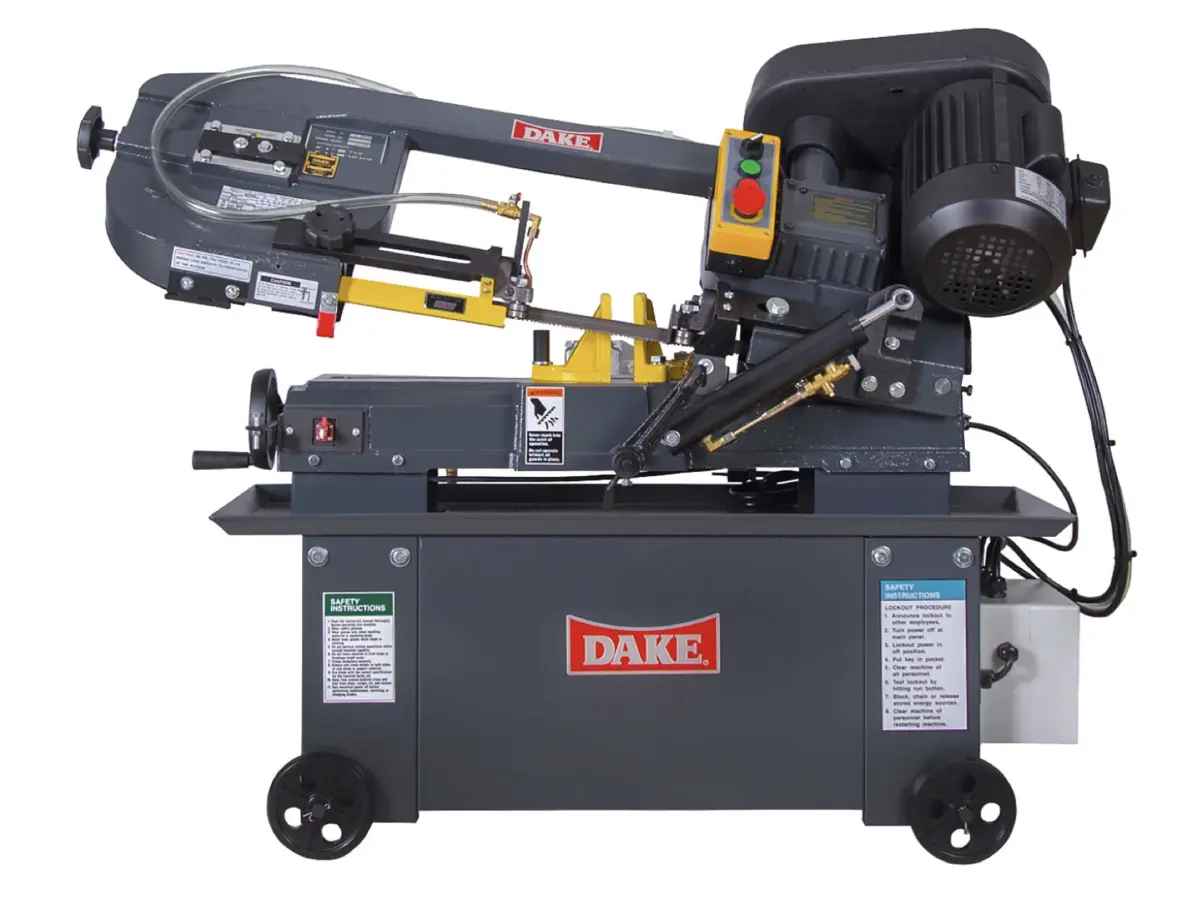

Standard Duty horizontal bandsaw offering accurate cutting, rugged gear box, hydraulic control, chip brush blade cleaner, and wet or dry cutting with simple operation.
Brand: Dake
Model SE712
Type: Horizontal Bandsaw
Capacity: 7” Rounds, 7″ x 12″ Flats
Horsepower: 3/4
Voltage: 110V, Single Phase
Maximum Blade Speed: 235 ft/min
Blade Width: 3/4″
Blade Length: 93″
Blade Speed: 85/130/180/235 ft/min
Solid Round 90° Capacity: 7″
Solid Round 45° Right Capacity: 4″
Solid Rectangle 90° Capacity: 7″ x 12″
Solid Rectangle 45° Right Capacity: 3-1/4″ x 5-1/2″
Solid Rectangle 60° Right Capacity: n/a
Bed Work Area: 21″ x 9″
Weight: 355 lbs
Height: 63-1/2″
Floor Space: 51″ x 16″
Floor Space Left To Right: n/a
Floor Space Front To Back: n/a
Floor To Bed: 21-3/4″
Accurate cutting with vibration free cast/machined table bed, heavy steel base, horizontally mounted guide arms, and adjustable blade guides and rollers.
CE approved low voltage safety reset, thermo overload protection, auto shut off, blade guards, safety interlocks.
Quick release vise and hand wheel action for fast change of material sizes.
Wet/dry cutting
Hydraulic control for head feed at variable rates and to lock head at any height.
Convenience chip brush blade cleaner, storage in base and wheels that roll easily.
Cutting table for vertical operation
Standard Equipment:
Recirculating Coolant System
Steel Base with Wheels
Low Voltage Controls
6-8 TPI Standard Blade
