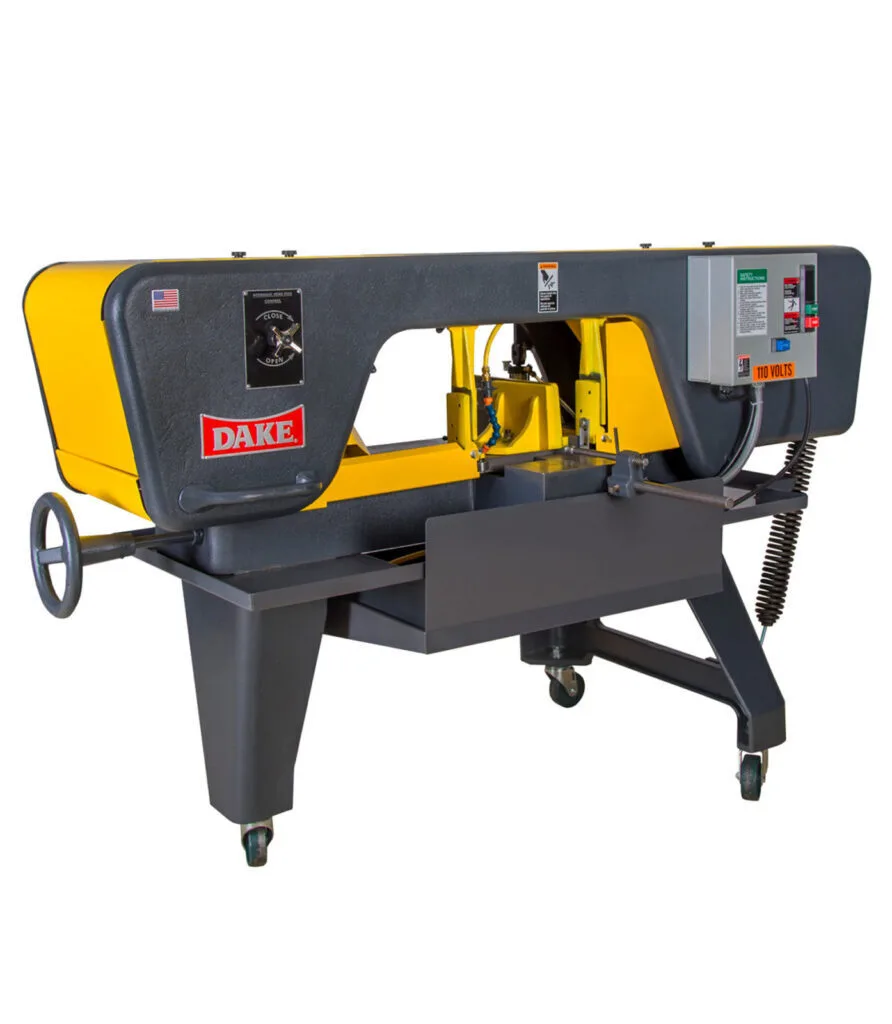

Heavy duty, American made, horizontal bandsaw with a dual cast head frame for large capacity cutting. Also featuring a three point suspension, adjustable eccentric roller blade guides, centralized controls, four-speed drive, 45º swivel vise jaws, and heavy 16” blade wheels.
Brand: DAKE
Model: JH10W1
Type: Horizontal Band Saw
Year: New
Capacity 10" Rounds, 18" Flats
Horsepower 1
Voltage 110V, Single Phase
Maximum Blade Speed 270 fpm
Blade Width 1"
Blade Length 137"
Blade Speeds 50/90/160/270 fpm
Solid Round 90˚ Capacity 10"
Solid Round 45˚ Right Capacity 7"
Solid Round 60˚ Right Capacity n/a
Solid Rectangle 90˚ Capacity 4-1/2" x 18"
Solid Rectangle 45˚ Right Capacity 4" x 10"
Solid Rectangle 60˚ Right Capacity n/a
Bed Work Area 11" x 18"
Weight 935 lbs
Height 45"
Floor Space 30" x 65"
Floor To Bed 23-3/4"
Heavy duty, American made medium production saw, comes with one standard Bi-metal blade.
Hydraulic controlled, gravity head feed, for hands free cutting. Hydraulically variable head feed control for regulation of head feeding rate.
Machine automatically shuts off after cut is complete.
Cast two-piece head frame and large pivot bar, for extreme rigidity and long life.
Gear box is driven via “V” belt and step pulleys for fast speed changes.
Low voltage switches. Thermo over load protection, Magnetic starter switch low voltage protection.
Miters up to 45°
Vise has quick release for quick change over of material sizes.
Chip brush keeps the gullets of the blade clean.
Cast legs are of a three-point design. This unique design lets the machine sit flat, even on uneven floor surfaces.
The saw is fully guarded for operator safety.
