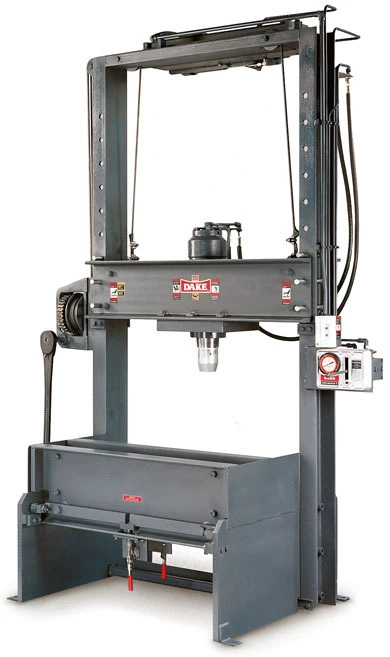

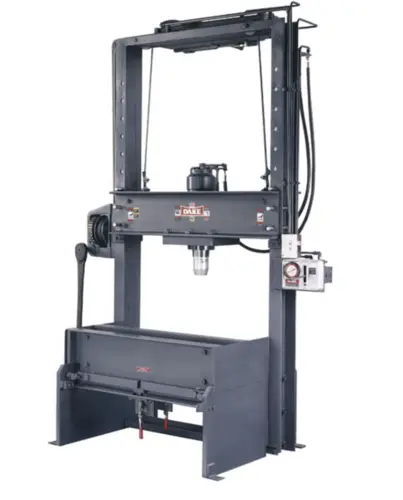

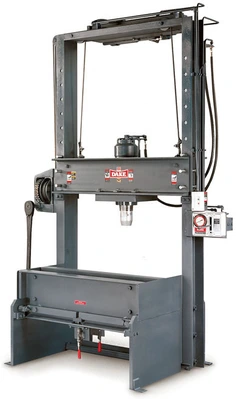

Dake Model 42-503 Hydraulic Press with Movable Table and 150 ton Elec-Draulic-II Operation.
Brand: DAKE
Model 42-503
Operation Elec-draulic II
Capacity (tons) 150
Table (lbs) 4200
Ram speed-advance N/A
Ram speed-press 17
Ram speed-return 38
Horsepower 10

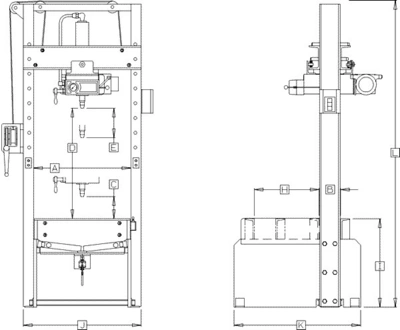

A width between uprights 48
B width between table channels 12-1/4
C minimum ram to table 15-1/2
D maximum ram to table 65-1/2
E ram travel 16
H table travel 30
I floor to table top 34
JxK base (inches) 58x56
L height (inches) 150
Weight (lbs) 4,700
Table rolls out to load heavy or awkward work, then returns easily into pressing position
Movable table allows overhead loading of heavy workpieces
Heavy-duty hoist easily raises and lowers workhead
Optional table plates
Adjustable workhead height provides maximum daylight for oversized work
Toggle clamps lock table securely in place
Optional V-blocks
