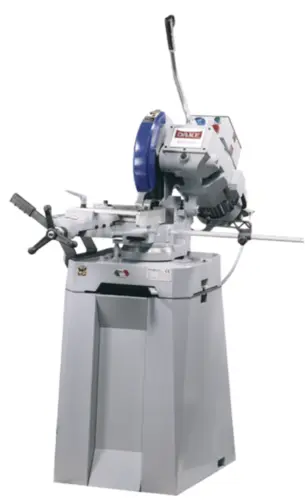

Manual cold saw with a head that will rotate 45º left and right for mitering. Heavy-duty low production saw, comes with one standard HSS blade. This model has 24V at controls, an e-stop, low voltage protection, and thermal overload protection. Available in 120V, 220V and 440V operation.
Part Number 9743151PH, 974315
Voltage 220V
Horsepower 1.6 HP - 2.35 HP
Cutting Ability Ferrous/Non-Ferrous/Plastics
Maximum Blade Diameter (in) 12-1/2
Maximum Vise Opening (in) 4-5/8
Maximum Feed Vise Opening n/a
Maximum Angle 45° Right/Left
Slotting No
Phase Single
Speeds (rpm) 44
Weight (lbs) 450
Solid Round 90˚ Capacity (in) 2-5/8
Solid Round 45˚ Capacity (in) 2-1/2
Tube 90˚ Capacity (in) 3-5/8
Tube 45˚ Capacity (in) 3-1/2
Square 90˚ Capacity (in) 3-1/4
Square 45˚ Capacity (in) 3-1/8
Rectangle 90˚ Capacity (in) 4-1/4 x 2-3/4
Rectangle 45˚ Capacity (in) 3-1/4 x 2-3/4
Work Height (in) 38-1/2”
Height (in) 59
Width (in) 26
Depth (in) 36
Head rotates 45º right and left of center for mitering
Dependable oversized spindle and gear assembly with steel spindle and bronze gear
Bronze gear with tapered roller bearing support
Reliable mechanical coolant pump with flow control adjustment
Additional ball bearing support of hardened and ground spindle shaft to prevent failure
E-Stop, low voltage protection, and thermal overload protection
Vise is hand wheel adjustable and cam lever activated for repetitious clamping
MODEL OPTIONS
Pneumatic Vice
Blade Starter Pack- 3, 12″ HSS Blades
301644 – 78″ Loading Table
301645 – 78″ Unloading Table
STANDARD EQUIPMENT
Blade
Pedestal Base
Tool Kit
Coolant
Adjustable Positive Stop
