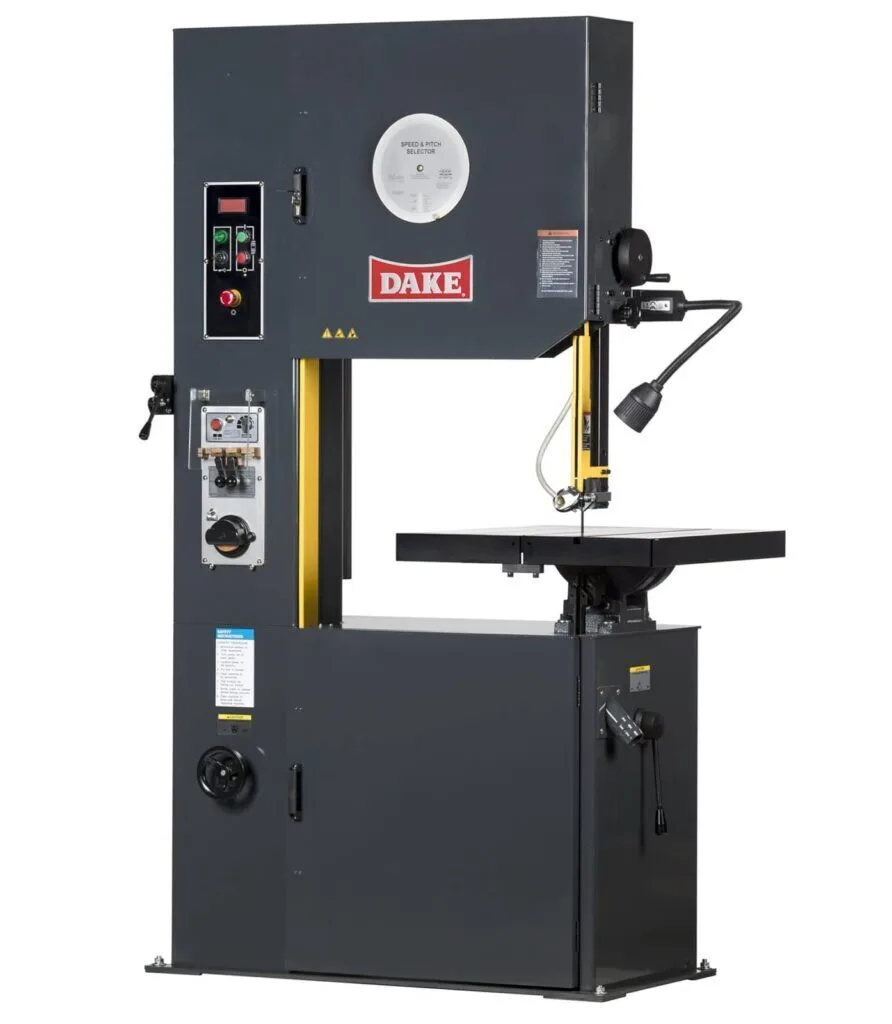

DAKE V-26 Vertical Band Saw
Have one to sell?
New
This heavy duty vertical bandsaw is designed for large production pieces. A 26″ capacity, multi-tilting table, and variable speeds offer cutting capabilities for many applications. Additional features include a digital tachometer, speed and pitch selector, door safety switches, and a work light. Complete with a built in welder/grinder/cutter this saw is sure to get the job done.
MODEL NUMBER - V-26
Part Number - 987031-2
Horsepower (HP) - 3
Voltage - 220V
Blade Width (in) - 1/4 - 1
Blade Length (in) - 184-1/4
Blade Speed (fpm) - Low 50-415/High 550-5000
Worktable Travel Distance (in) - n/a
Band Wheels Number - 2
Band Wheels Size (in) - 26-1/4
Throat Size (Band To Column) (in) - 26
Maximum Work Height (in) - 13
Work Table Dimensions (in) - 23-1/2 x 27-1/2
Worktable Tilt - 45° R / 10°L
Worktable Height (in) - 39-3/8
Machine Height (in) - 84
Machine Floor Space (in) - 51 x 32
Weight (lbs) - 1540
Features:
Variable Speeds with 50 – 415 feet per minute in low range and 550 – 5,000 feet per minute in the high range
26″ saw for intermediate-size workpieces
Adjustable Table
Digital speed indicator for clear readout
Work light comes standard for increased visibility
Low voltage controls, main power lock out switch and door limit switches
Heavy cast, tilting table with chip clearance grooves
Built in blade welder with grinder and shear to easily fix broken blades
Heavy Duty Frame
Rip Fence
Work Light
Blade Welder / Grinder / Shear
Speed Indicator (Digital Readout)
Blade Tension Indicator
Digital Tachometer
Chip Blower & Blade Brush
1 Standard Blade
*440V model requires step-down transformer for operation (part number: 300674) Sold Separately
