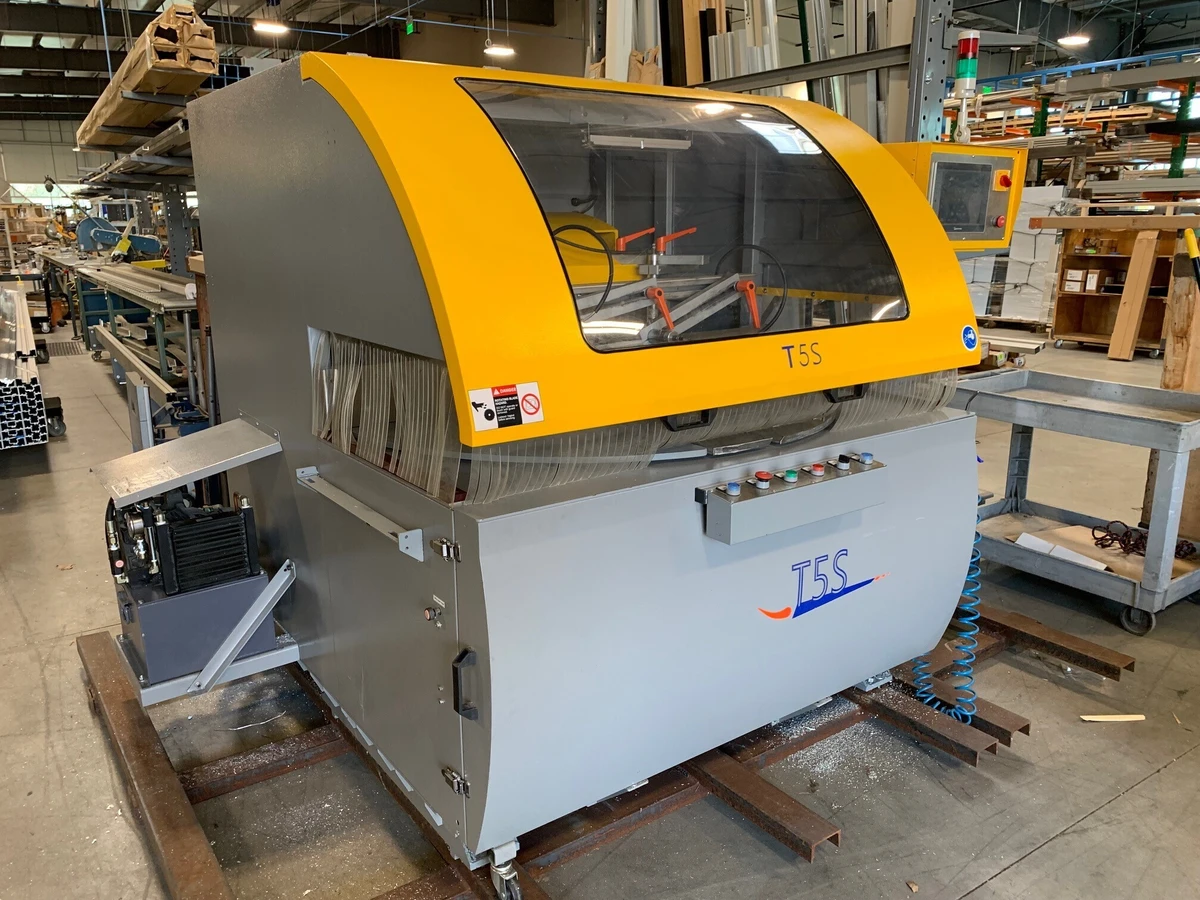

PAT MOONEY PMI-TS5 SAW

The PMI-T5S is a semi-automatic compound miter upcut saw that is built and designed to cut aluminum extrusions, profiles, and other non-ferrous materials (copper, brass, plastics).The saw head’s position is servo driven for precision accuracy. The automatic compound miter function automatically positions the saw head for angle cuts from 0 to 45 degrees in the rotary (left and right) and tilt (right) position.

Cutting Capacity
See charts here: https://patmooneysaws.com/product/pmi-t5s-compound-miter-upcut-saw/

More Information:

Mitre Capability:
The PMI-20-24 is equipped with a turn table that allows set up of miter cut in seconds. A positive lock of the table is released and then built in handles allow for easy turning of the saw blade approach. Several positive stops via a locking pin allow for rapid and accurate set up of the angle to be cut. The work piece DOES NOT need to be moved from the 90 degree in feed direction.

7 1⁄2 HP Saw Motor:
The strong drive system via a 7.5 HP saw motor allows for maximum cutting force and chip removal. This additional power extends the life of the saw blade between regrinds.

Upcut Design and Saw Blade Chamber:
The PMI 20-24 is an Upcut saw. The saw blade is housed under the work table and travels up through the work piece. This has several advantages such as safety (less blade exposed during cut), chip removal and longer blade life.

Precision Ground Work Table with Special Surface Coating:
The work table is a ground surface and is coated with a special Chromate coating which prevents marring the outside of your work piece.

Material Clamping:
The pneumatic clamping system has adjustable clamping pressure to prevent distortion of thin wall profiles. The top clamp holds the work piece on both sides of the saw blade to deliver a burr free cutoff part. This clamp is controlled by its own cylinder and can be adjusted according to the size of the work piece.

Saw Blade Feed:
The saw blade feed is controlled via a pneumatic cylinder with full control of the feed rate. This allows for accurate cuts and long blade life. In addition, the saw blade travel is controlled for fastest cycle time.

Precise Micro-Mist Blade Lubrication System:
The blade is lubricated via a micro-drip system. A small amount of lubricant is introduced to an air line at the point of discharge for control and economical distribution of the saw lubricant.

Safety Features:

Safety Machine Enclosure:
The work table is guarded via a machine enclosure that is monitored by a limit switch. The cover must be closed for the saw to cycle.

Two Hand Cycle Start Activation:
Dual start push button insures the operator has both hands free of the machine.

Safety Limit Switch:
The blade access door is protected via a limit switch that will shut down the machine in case of an open door.
