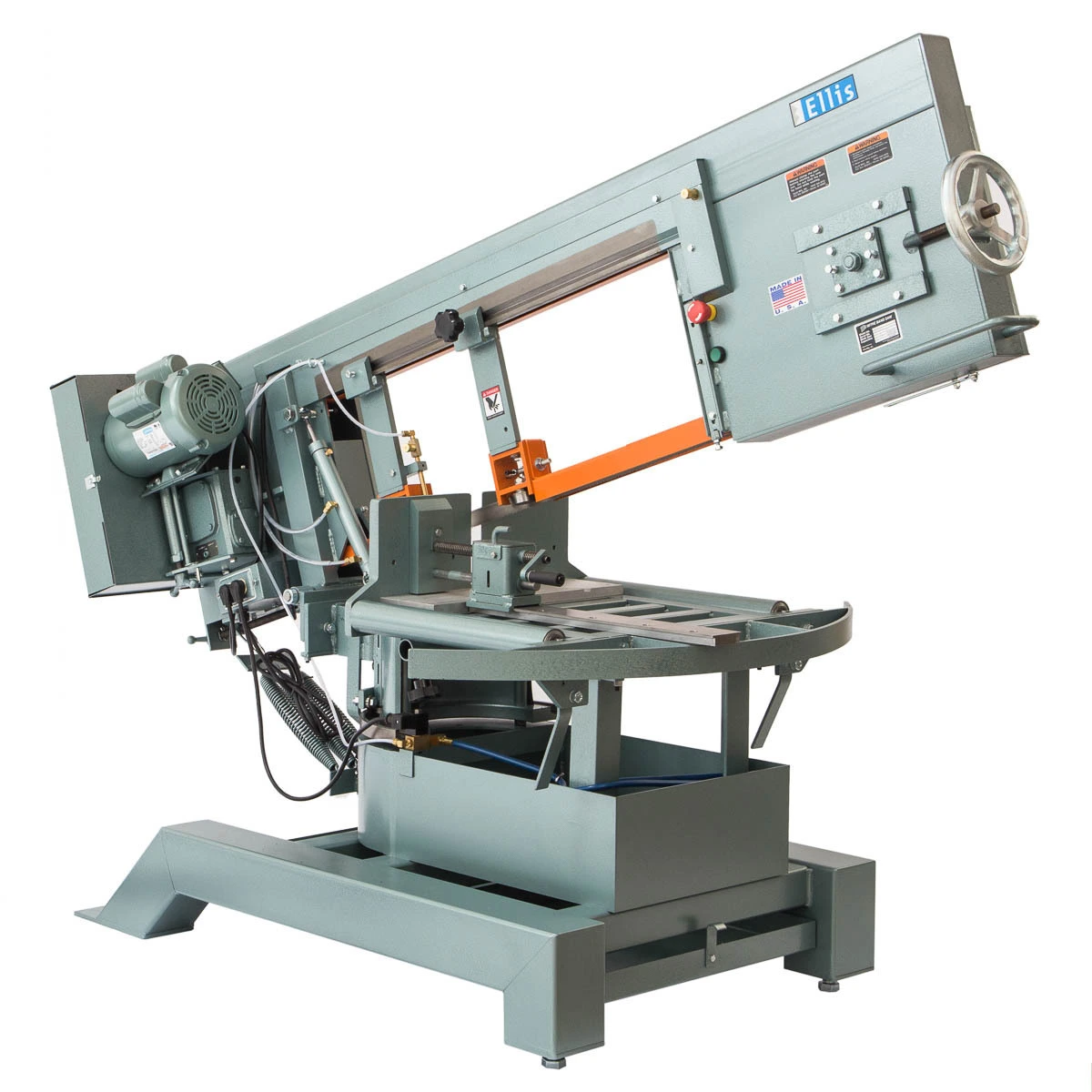

Ellis 4000 Miter Bandsaw with 13.5” round capacity, 1-1/4” Blade and 2 HP Motor
Brand: Ellis
Model: 4000
Type: Horizontal Miter Bandsaw
Year: New
Capacity (90° & 45°) :
13-1/2” Round at 90°
12” Pipe at 90°
22” Flat at 90°
13” H x 16” W Tube at 90°
13-1/2” Round at 45°
12” Pipe at 45°
14” Flat at 45°
13” Square Tube at 45°
Blade Speeds (variable) 60-180 FPM
Blade Size 15’0” x 1-1/4”
Feed Control Hydraulic Adjusting
Vise Quick Adjusting Screw Type
Shut Off Automatic
Motor – Standard 2 H.P. 220 Volt Single Phase
Optional 3 PH 220-440-460-480-575
Shipping Weight 1250 lbs.
Size Table Height 29-3/8”
Dimensions: Length 90” x Width 43-1/4” x Height 50”
Construction Heavy Steel; Welded & Machined for Accuracy & Durability
Sealed Oil Bath Worm Gear
Removable Chip Tray
Air System
Table Back 7-1/4”
Head of band saw moves left or right for angle cutting
Built-in Protractor for fast and accurate selection of angles
Stock remains in one position for all cuts
Options:Accessories :
Stock Gauge with Micro-Adjuster #5750
Single Stock Stand – 1 Roller #6185
Stock Stand – 5’ Long, 4-Rollers (20″ W) #6227
Pipe Clamp Attachment for Screw Vise #6286
TERMS:
FOB ELLIS FACTORY - VERONA, WI - Standard Ellis product warranty applies. Full Payment due at the time of order. Price includes machine prep and loading on buyers truck. Availability and shipping lead time determined at the time of order, all stock machines subject to prior sale. Freight rate provided at the time of order. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
