Capacity (90° & 45°)
8” Round at 90°
8” Pipe at 90°
10” Flat at 90°
6” Round at 45°
5” Pipe at 45°
6” Flat at 45°
Blade Speeds (3) 60-120-230 FPM
Blade Size 8’6” x 1/2” x .032
Feed Control Hydraulic Adjusting
Vise Quick Adjusting Camlock
Shut Off Automatic
Motor 3/4 H.P. 110/220 Volt Single Phase
Portable 10” Wheels-Standard
Shipping Weight 385 lbs.
Size
Table Height 27”
Length 52” x Width 23” x Height 44”
Sealed Oil Bath Worm Gear Standard
Removable Chip Tray Standard
Construction Heavy Steel; Welded & Machined for Accuracy & Durability

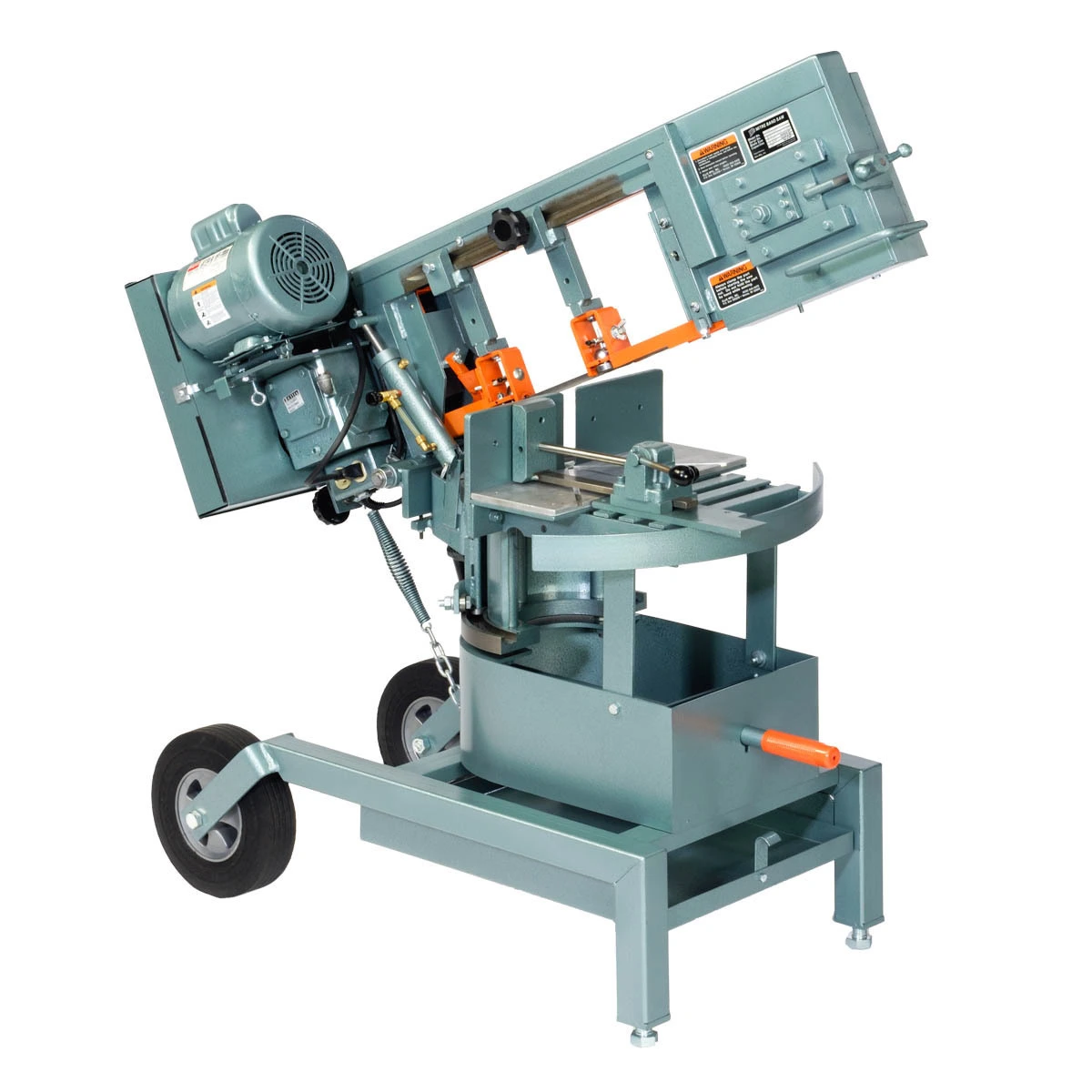

Head of band saw moves left or right for angle cutting
Built-in protractor for fast and accurate selection of angles
One-step conversion from horizontal to vertical band saw
Stock remains in one position for all cuts
Portable-this band saw moves easily to the job site
TERMS:
FOB ELLIS FACTORY - VERONA, WI - Standard Ellis product warranty applies. Full Payment due at the time of order. Price includes machine prep and loading on buyers truck. Availability and shipping lead time determined at the time of order, all stock machines subject to prior sale. Freight rate provided at the time of order. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
