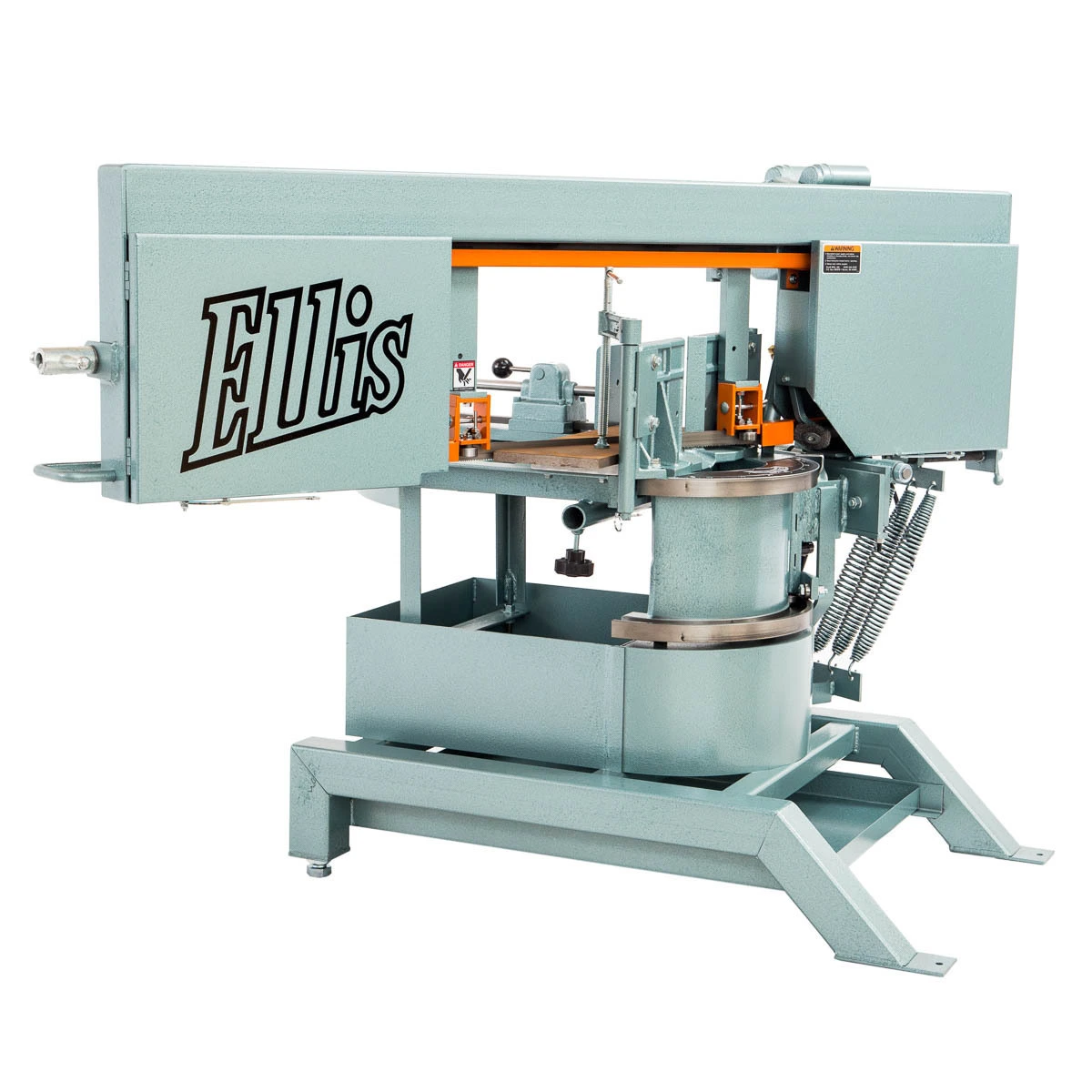

Ellis 2000 Miter Bandsaw with 11” round capacity, 1” Blade and 1.5 HP Motor
Brand: Ellis
Model: 2000
Type: Horizontal Miter Bandsaw
Year: New
Capacity (90° & 45°) :
11” Round at 90°
11” Pipe at 90°
17” Flat at 90°
11” H x 13” W Tube at 90°
11” Round at 45°
10” Pipe at 45°
11” Flat at 45°
Blade Speeds (3) - 60 / 115/ 230 FPM
Blade Size - 12” x 1”
Feed Control - Hydraulic Adjusting
Vise - Quick Adjusting Camlock
Shut Off - Automatic
Motor – Standard 1-1/2 H.P. 220 Volt Single Phase
Motor - Optional 3 PH 220-440-460-480-575
Shipping Weight - 800 lbs.
Size Table Height - 28-1/8”
Dimensions: - Length 72” x Width 38-1/4” x Height 47”
Construction - Heavy Steel; Welded & Machined for Accuracy & Durability
Sealed Oil Bath Worm Gear - Standard
Removable Chip Tray - Standard
Air System - Standard
Table Back 7-1/4” - Standard
Head of band saw moves left or right for angle cutting
Built-in Protractor for fast and accurate selection of angles
Stock remains in one position for all cuts
Options:
Air System - 5922 (120V), 5932 (230V)
Stock Gauge with Micro-Adjuster - #5750
Single Stock Stand – 1 Roller - #6185
Stock Stand – 5’ Long, 4-Rollers (20″ W) - #6228
Pipe Clamp Attachment for Camlock Vise - # 6106
Screw Type Vise - #6622
Pipe Clamp Attachment for Screw Vise - #6286
TERMS:
FOB ELLIS FACTORY - VERONA, WI - Standard Ellis product warranty applies. Full Payment due at the time of order. Price includes machine prep and loading on buyers truck. Availability and shipping lead time determined at the time of order, all stock machines subject to prior sale. Freight rate provided at the time of order. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
