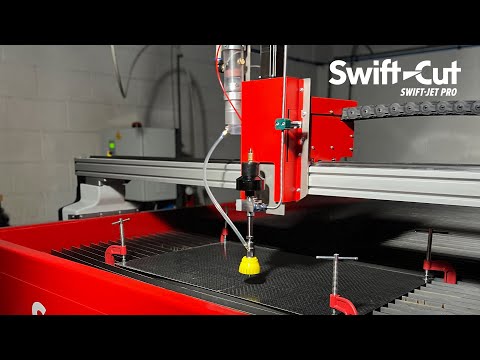

Introducing the Swift-Jet Pro
The Swift-Jet Pro is a feat of incredible engineering; a package that combines the ability to cut a wide range of materials with superb accuracy and repeatability, to create excellent results. Exceptional quality, phenomenal value for money, and the robust build of our CNC plasma tables have all come together to create the Swift-Jet Pro, the waterjet table that is setting the new standard.
Why choose
a Swift-Jet Pro?
The Swift-Jet Pro is made by engineers, for engineers. We understand the needs of our customers and we translate what it is that will improve the user-experience into the table that fabricators want. It is built by them and for them. Undisputedly Swift-Cut, the Swift-Jet Pro is bringing the incredible capabilities of waterjet cutting to the masses – a table that has combined high-quality software with our robust table build and made it affordable. If you never thought you could cut anything but metal within your budget, that is all about to change.
Main Key Features:
• Underwater cutting system (adjustable water level) - means less noise and less mess
• Cutting area options: 5’ x 5’ or 5’ x 10’
• IGEMS software - Industry leading software has a fantastic material library which saves you time by cutting materials at the optimum feed rate every time, and with the best finish
• High/Low pressure control for piercing brittle materials
• Lower cost running – The quality direct drive pump from industry leading manufacturer KMT, is more energy efficient than intensifier pumps and has a longer service life
• Space and time saving – The pump requires less filtration (than intensifier setups) potentially eliminating the need for an expensive and bulky water purifier
• Available as water only; for cutting foam, textiles, PVC, vinyl and more. Or as water and abrasive for cutting everything else! *
• Price – The Swift-Jet Pro is the ultimate in affordable, value for money waterjet cutting
Table Footprint 13.8' x 7.6'
Table weight 12600lbs
Operating weight (table and water) 7992lbs
Water Volume 1021 US Gallons
Table Height
- Water only cutting - 60”
- Abrasive cutting - 68”
- Allow 118” height for the high pressure pipe
Cutting envelope 10'x5'
Z-Axis travel 4.3"
Maximum supported material load 82lbs/sq. ft
Drive Description
- Hybrid servo motors and triple sealed linear bearings with scrapers on all axes. A bellow protects the Z-Axis ballscrew water and garnet ingress. Dual drive Y-axis.
Gantry Clearance 9.8"
Maximum material thickness
- Water only - 4”
- Abrasive 2”
Input Voltage 110-230VAC (6-4A)
Input Air Pressure 90PSI
