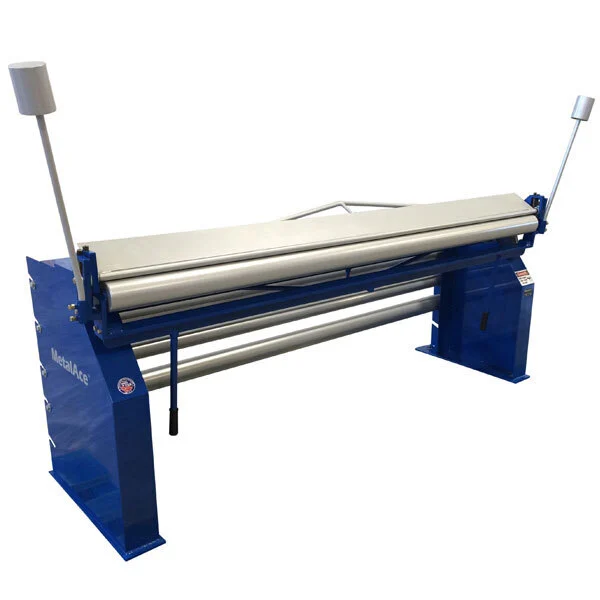

MetalAce 8' x 18 gauge Radius Brake with 5 radius rolls
Have one to sell?
New
This 8 foot sheet metal radius brake is the perfect solution for forming radius bends in mild steel and aluminum. Stress and cracking of material is minimized due to the unique design of the apron, which swings outside the radius and rolls across the material. Heavy duty plate construction, quick tooling change over, and convenient radius roll storage on the machine make this brake durable and easy to use. Especially useful in race car fabrication, as well as automotive and aircraft restoration work, this brake is an excellent addition to any sheet metal fabrication shop.
Brand - MetalAce
Model - RB9618
Length - 96"
Brake Type - Radius Brake
Mild Steel Capacity: 18 gauge (1.2mm)
Aluminum Capacity: .080 (2.0mm)
Stainless Capacity: 22 gauge (.8mm)
Working Length (inches): 96
Weight (pounds): 1190
Dimensions (LxWxH): 40 x 116 x 50
(5) Radius Rolls per below:
1 inch OD for 1/2 inch radius
2 inch tube for 1 inch radius
2-1/2 inch tube for 1-1/4 inch radius
3 inch tube for 1-1/2 inch radius
4 inch tube for 2 inch radius
