GARY 3350 SUPER DUTY DELUXE | Slitters & Slitting Lines
Have one to sell?
ConditionNew
New

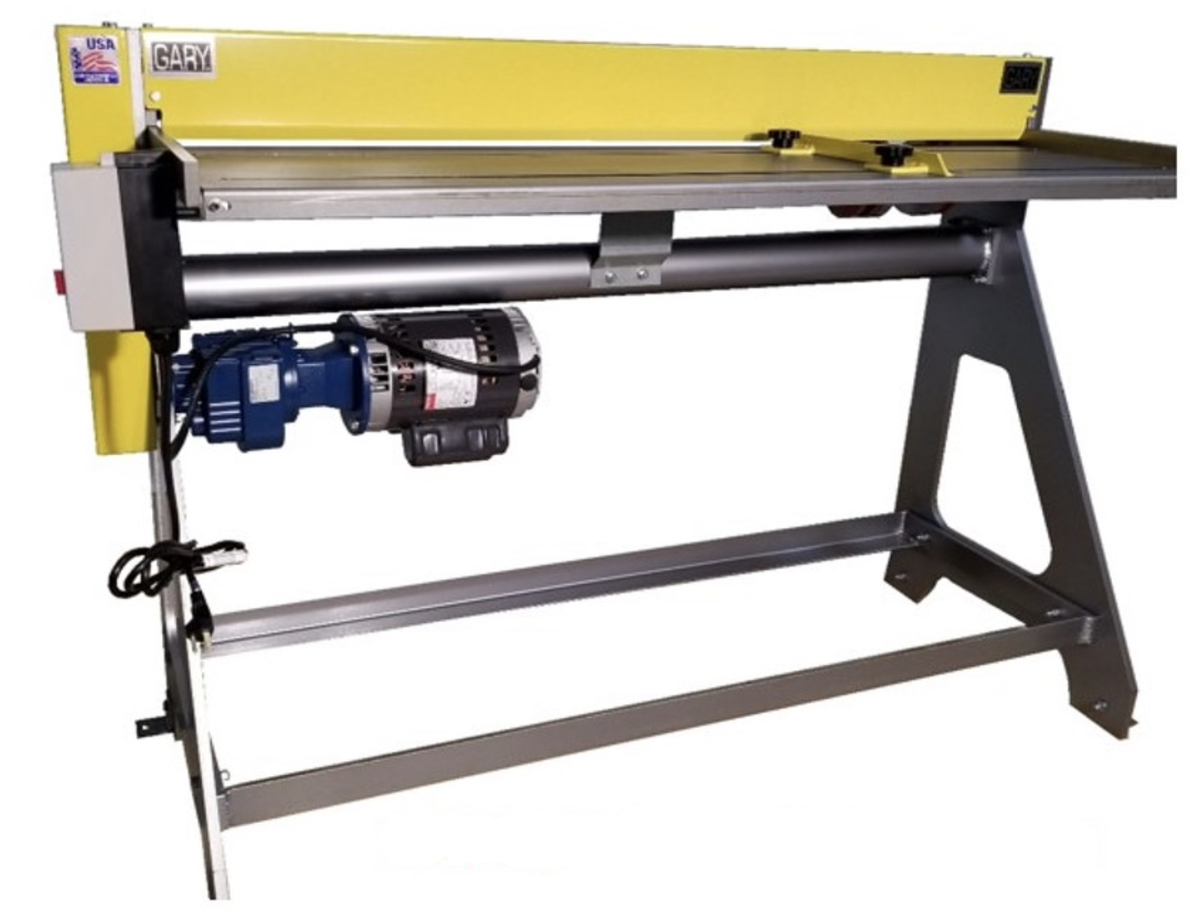

The Gary Superduty Deluxe 48” Sheet Slitters offers many features like a built-in entry guide, stripper rings and intergraded scale to help the operator in setting up the cuts. The 3350DX “SuperDuty Deluxe is equipped with a 3⁄4 HP motor with standard 110 V plug-in services to supply the torque required to cut a wide range of material thickness (16 gauge through 30 gauge) at a standard operating speed of 60 FPM. Two sets of tooling and Stripper Rings come standard on this slitter. The Stripper Rings are beneficial for light gauge pre-painted material to prevent marking the surface.
Brand - Gary
Model - 3350 Super Duty
Capacity - 16 Gauge
Width Overall - 58"
Width Between Frames - 52-1/2"
Maximum Sheet Width - 48-1/2 - 51” Less Gauge
Standard table Height - 35"
Depth Overall - 26"
Arbor Diameter - 3"
Knife Dimensions - 5” OD x 3/4"
Motor HP - 3/4 HP
Feed Speed (FPM) - 60 FPM
Voltage - 110V /220V - 1PH
Weight - 515 Lbs.
3” diameter cold-roll turned, ground and polished shafts mounted in dual wall ball bearings
Bearing are lubricated for life series
Gauge mounting on each side permits left or right hand operation
End frames have legs integrated into them for a more stable machine
The exclusive GARY Torsion Tube Assembly makes it a lightweight rugged unit
Heavy gauge steel table with a slotted top and quick-adjust entry guide
Slitter knives are proven GARY “Quickset” design manufactured from toolsteel
Knives are “reversible”, intervals between sharpening is double that of a single edge knives
2 sets of standard 3” x 5” x 3⁄4” wide high-carbon tooling is included
60 FPM standard operating speed
Heavy duty roller chain drive powered by 3⁄4 HP geared motor with a magnetic starter & thermal overload
Stripper rings to help prevent marking on pre-painted materials
Standard 110V -1 Phase; OPTIONAL: 240-480/3 phase; or Variable Speed Controller
