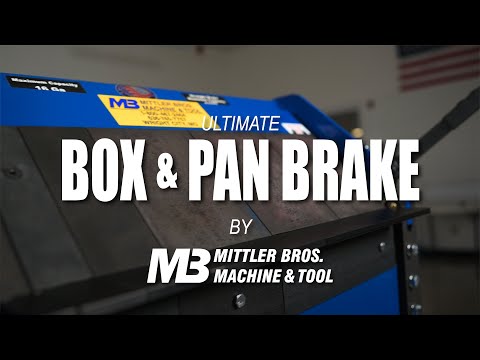

MITTLER BROS 72" x 18 GA BOX & PAN BRAKE
Have one to sell?
New
The ULTIMATE Box & Pan Brake has a unique “3 Finger” design. This design incorporates moveable fingers on the bed and apron as well as the usual upper fingers. This design allows the operator to make bend combinations that were extremely difficult if not impossible before. The ULTIMATE Box & Pan Brake has wrenchless upper set back adjustments and is designed to bend 16 gauge mild steel the full width with the included apron angle fingers. A complete set of upper fingers, bed fingers, apron angle fingers, and counterweight are standard equipment
Bending Length: 72” w/ 73” of Clearance
Counterweight at each end of Apron
3-1/2" Depth of Box
Max. 1-1/2" Lift of Beam Max.
125° Degree of Bend Max.
2" Down leg Max.
Front to Rear Adjustment: 1"
1/4" Reverse Bend Min. (with 1/4" Apron Fingers)
MAX CAPACITY:
18ga (.050") Mild Steel
22ga (.031") Stainless
14ga (.064") Aluminum
