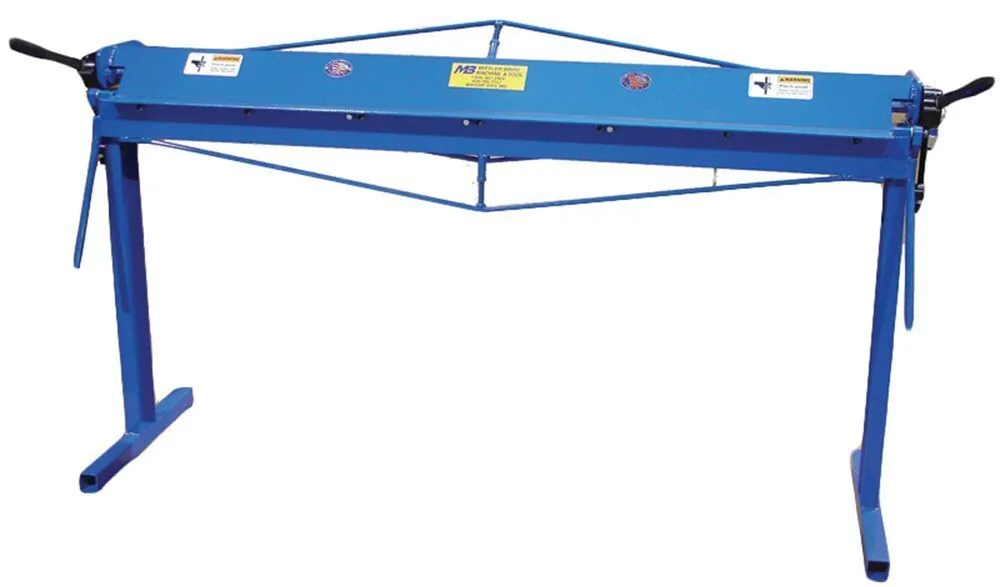

MITTLER BROS 92" X 22 GAUGE BENCH TOP STRAIGHT BRAKE
Have one to sell?
New
The MB 22 Gauge Brake is designed for race car body fabrication. This design is not only economical, but also includes some of the same quality features of our Ultimate Box & Pan Brake. The 96” Model Includes 1/2” Upper Radius Bar. The Upper Radius Bar is optional on the 72” Model. (mounting holes are pre drilled in 72” brake)
*NOTE: If you are attempting full width hems, upgrading to one of our 16 gauge straight brake models is recommended
SPECIFICATIONS
Precision Machined Cam
Bronze Bearing with Steel Pivot Pin
Wrenchless Upper Adjustments
Legs Included
MAX CAPACITY:
22 Ga (.030") Mild Steel
18 Ga(.040") Aluminum
THIS PRODUCT IS OVERSIZED WITH LIMITED DELIVERY OPTIONS. IT CANNOT SHIP TO RESIDENTIAL ADDRESSES. MUST SHIP DOCK TO DOCK OR TO TERMINAL. CUSTOMER WILL BE CONTACTED FOR SHIPPING OPTIONS.
