HE&M KTC-120SP - 4.724" CAP
Have one to sell?
New
Product Description

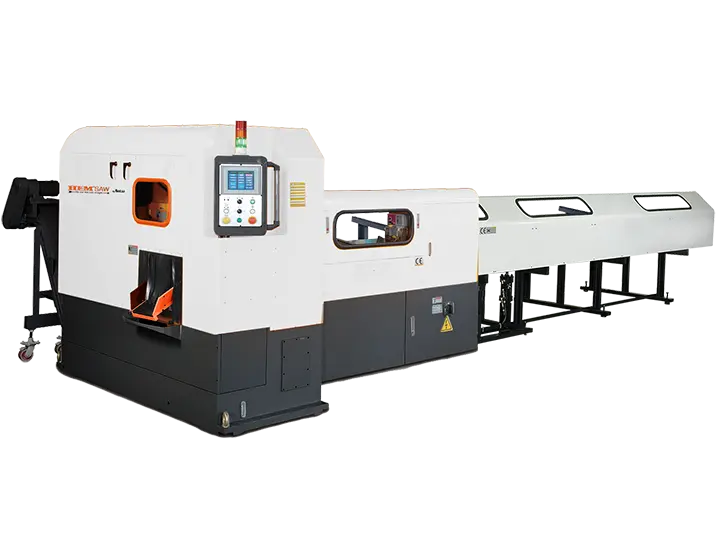

The KTC-120SP carbide sawing machine is controlled with a touch screen interface. The saw head is driven by a servo motor and the hydraulics are hard-plumbed for more consistent operation. An automatic work piece loader for handling and positioning material before the cut is standard. Options are available.
Technical Highlights
Main Capacity: 0.787-4.724" (Diameter)
Bar-feed: N/A
Blade:
Motor: 20 HP
Hydraulic Motor: 3 HP
Operation: Automatic
Square Capacity 0.787-3.543" (Square)
Round Capacity 0.787-4.724" (Diameter)
Bar-feed N/A
Motor 20 HP
Hydraulic Motor 3 HP
Operation Type Automatic
Power Source Hydraulic
Weight N/A
Blade Type Circular
Primary Circular Blade TCT Carbide Tipped---380mm Diameter --- [79-706 RPM ]
Uses TCT Carbide Tipped Saw Blade 380 x 2.6t mm
Option to Use HSS High-Speed Steel Saw Blade 380 x 2.0t-4.0t mm
Blade Feed Slope Type
Compact PLC Control & Inverter
Touch Screen Feature for Setting Machine & Cut Functions
Saw Blade Feed Driven by Servo Motor
Hard-Plumbed Hydraulic System
Vise - Hydraulic Horizontal & Vertical Main
Stroking Front "Outboard" Vise (Reduces Remnant Lengths)
20' Standard Loader - Automatic Workpiece Loading
Automatic Product Sorting
Work Piece Positioning
Precision Spindle
Variable Blade Speed
Magnetic Power Brake and Fan
Blade Brush
Chip Removal - Air Gun & Belt Type Chip Conveyor
Built-In Coolant System w/ Flood & Mist
208-240V, 50/60hz, 3-Phase
