HE&M KTC-150SP - 6.023" CAP
Have one to sell?
New
Product Description

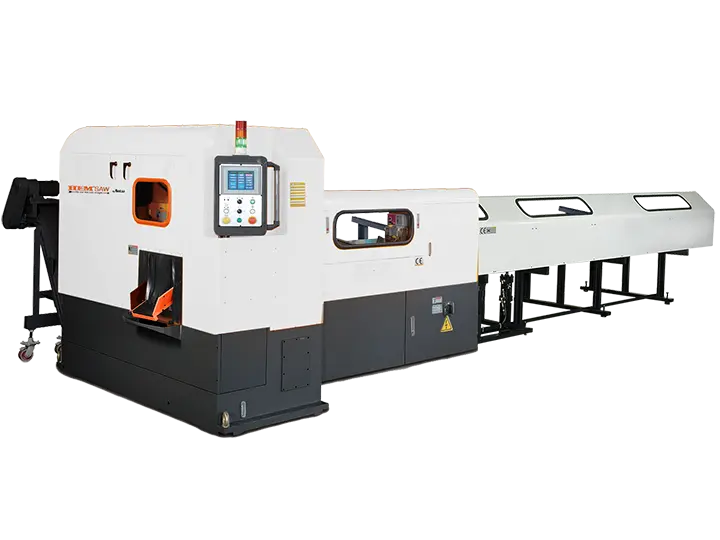

The KTC-150SP carbide sawing machine is controlled with a touch screen interface. The saw head is driven by a servo motor and the hydraulics are hard-plumbed for more consistent operation. An automatic work piece loader for handling and positioning material before the cut is standard. Options are available.
Technical Highlights
Main Capacity: 1.575-6.023" (Diameter)
Bar-feed: N/A
Blade:
Motor: 25 HP
Hydraulic Motor: 5 HP
Operation: Automatic
Square Capacity 1.575-4.33" (Square)
Round Capacity 1.575-6.023" (Diameter)
Bar-feed N/A
Motor 25 HP
Hydraulic Motor 5 HP
Operation Type Automatic
Power Source Hydraulic
Weight N/A
Blade Type Circular
Primary Circular Blade TCT Carbide Tipped---360mm Diameter --- [75-600 RPM ]
Optional Circular Blade (1) TCT Carbide Tipped---460mm Diameter --- [100-760 RPM ]
Uses TCT Carbide Tipped Saw Blade 360 x 2.26t mm x 460 x 2.7t mm
Option to Use HSS High-Speed Steel Saw Blade 460 x 3.0t-5.0t mm
Blade Feed Slope Type
Compact PLC Control & Inverter
Touch Screen Feature for Setting Machine & Cut Functions
Saw Blade Feed Driven by Servo Motor
Hard-Plumbed Hydraulic System
Vise - Hydraulic Horizontal & Vertical Main
Stroking Front "Outboard" Vise (Reduces Remnant Lengths)
20' Standard Loader - Automatic Workpiece Loading
Automatic Product Sorting
Work Piece Positioning
Precision Spindle
Variable Blade Speed
Magnetic Power Brake and Fan
Blade Brush
Chip Removal - Air Gun & Belt Type Chip Conveyor
Built-In Coolant System w/ Flood & Mist
208-240V, 50/60hz, 3-Phase
