The Lockformer® Vulcan® Fiber Laser Cutting System is the next evolution in cutting systems from Lockformer. Using over 30 years of sheet metal cutting experience, we’ve designed the Lockformer Vulcan Fiber Laser Cutting System to meet the specific needs of sheet metal fabricators to help take your operation to the next level. Faster, more precise cutting, better quality parts, coil feeding capability, quicker access to cut parts and many more features all designed to improve the productivity and profitability of your fittings operation while setting the standard for safety (accession number and coveted Class 1 safety rating from the Food and Drug Administration).

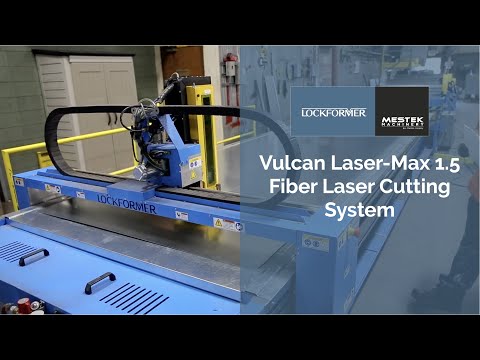

Lockformer Vulcan Fiber Laser 1.5 Coil Fed Sheet Metal Laser Cutting System
Software / Computer System:
Windows 10® Professional PC with 19" Monitor and Printer
Other Cam Software interfaces available upon request
Machine Control:
Mach 3 and Color Graphic Industrial Touch Screen
Cutting / Plasma Unit:
1.5 KW Standard
Cutting Capacity:
0.120" (3 mm) or 0.135" (3.5 mm) mild steel cutting capacity based on laser resonator selected
Speed:
Positioning speed and max cutting speed are the same at 1,100 ipm (28 m/min) on thinner materials (26 ga or 0.4 mm)
Cutting Area:
Standard: 5' x 10' (Optional: 5' x 20'),
Table Capacity: 350 lbs.
Dimensions / Weight:
Length: 168" x Width: 96" x Height: 63" (5' x 10' table)
Weight: 3,200 lbs.
- 2.0 KW fiber laser resonator Available
- Cutting Area and Table Capacity 5' x 20' Available
