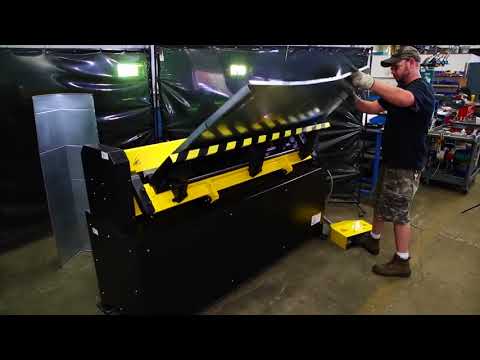

The Lockformer Pneuma-Wrap Pneumatic Brake Press is the ideal machine for forming L, flat, wrap, transverse duct connector (TDC), and transverse duct flange (TDF) duct. The tooling has been redesigned to accept any size duct from 7″ up to standard 5′ without adjustment and the beam has also been redesigned to clear pins on lined duct. The Pneuma-Wrap Brake also features pneumatic drives for clamping and folding beams with automatic returns as well as pneumatic operated pedal control.
BRAND: Lockformer
MODEL: Pneuma-Wrap Pneumatic Brake Press
Depth of Pocket:
Pneumatic drive or the clamping beam and the folding beam with automatic return
Air Consumption:
11 CFM @100 PSI
Dimensions / Weight:
Length: 58.5" x Width: 24" x Height: 41"
Weight: 3,500 lbs.
Redesigned beam to clear pins on lined duct
Rugged Welded Steel Construction
Maintenance-Free Bearing & Guides
Pneumatic Drive For Clamping Beam with Automatic Return
Pneumatic Drive For Folding Beam with Automatic Return
Pneumatic Operated Pedal Control machine design:
Dial-Adjustable Bend Angle 0 to 90°
Automatic TDC®/F® Notch Locator
Front Adjustable Support Apron
Safety Interlock Controls
*NOTE: this machine was made by Lion Industries which was absorbed into the Lockformer brand
TERMS:
FOB FACTORY, Cedar Rapids, IA, Includes Manufacturer’s 1-year warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
