LOCKFORMER QUICK STITCH 50"
Have one to sell?
New
The new QuickStitch 2.0 Rotary Stitch Welder from Lockformer® was desgined to meet the needs of today’s duct fitting fabrication. The QuickStitch 2.0 optimizes your welding production output by giving the operator a controlled and consistent longitudinal weld from end to end with a minimal overlap. With a new operator-friendly touch-screen control panel wth a memory feature for ease of production, the operator can choose from a continuous or stitch weld that provides an excellent solution for welding of both galvanized and stainless steel straight tubes and round fittings. A manual welding pressure system is also included for welds and changeovers. The system also features digital temperature switches for chiller temperature and water flow adjustments. The QuickStitch 2.0 produces air-tight weld seams with an adjustable weld speed from 3 ft/min to 49 ft/min for maximum productivity and efficiency.

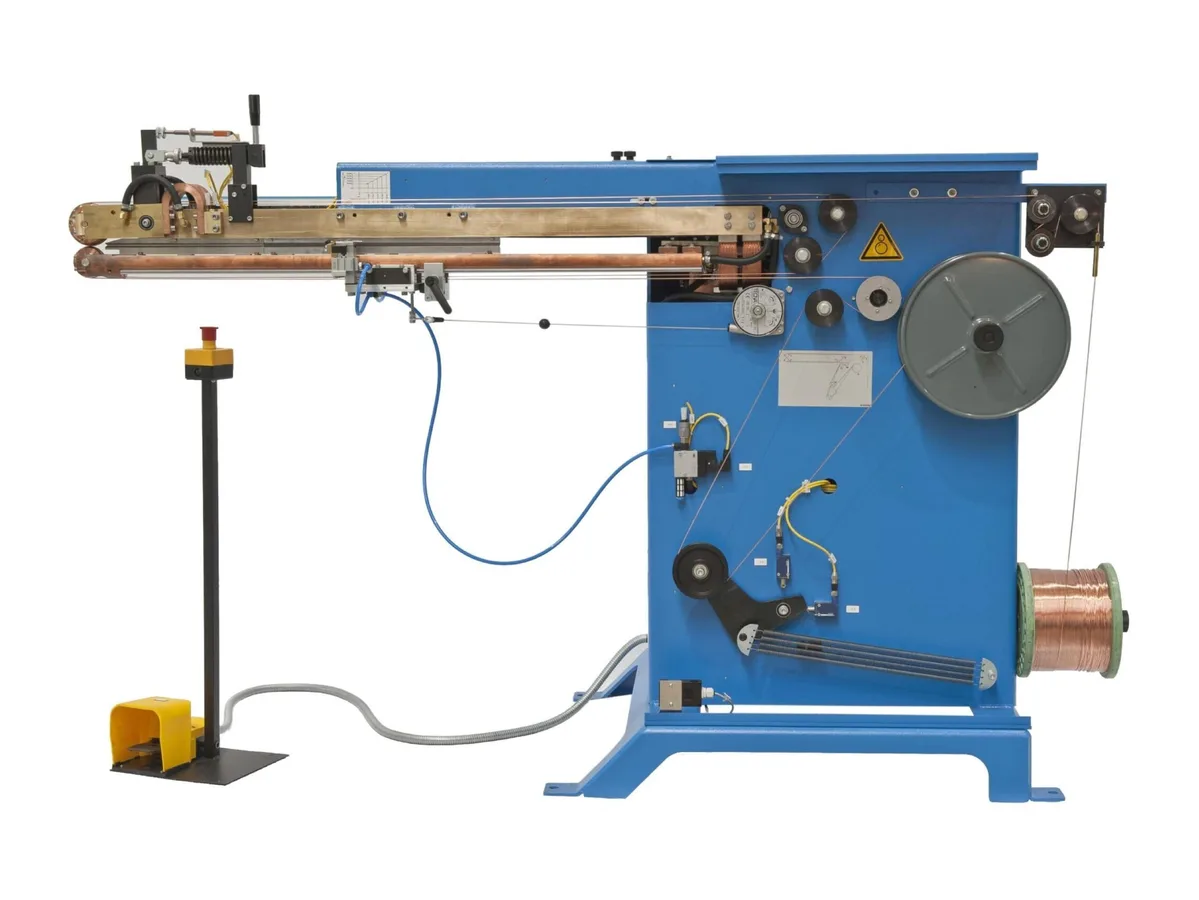

Lockformer QuickStitch 2.0 Rotary Stitch Welder
Model 50"
Galvanized Steel Material Thickness Range 30 ga to 18 ga (0.012" to 0.048")
Stainless Steel Material Thickness Range 30 ga to 18 ga (0.012" to 0.048")
Diameter Range 3" to 40"
Longitudinal Seam Length 2" to 40"
"Standard Overlapping
(Special on Request)" "0.236" (1/4"" nominal)"
Power, Stitchwelder 460VAC, 3PH, 60Hz, 125A
Power, Chiller 120VAC, 1PH, 60Hz, 10A
Copper Wire "0.078"" round
(optional 0.070"" round)"
Weld Speed 3 ft/min to 49 ft/min
Dimensions / Weight Length: 115" x Width: 45" x Height: 69"
Machine Weight: 1,323 lbs.
Copper Wire Coil Weight: 44 lbs."
The QuickStitch 2.0 is available in three (3) models to meet your operational needs allowing you to create longitudinal seams of 2” – 40”, 2” – 50”, or 2” – 60” respectively.
