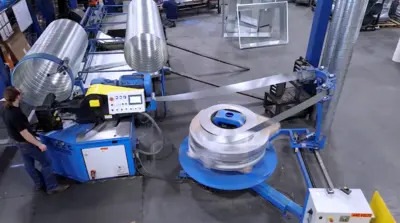

LOCKFORMER 1.2 SPIRAL TUBE FORMER
Have one to sell?
New
Lockformer Spiral Tube Formers are revolutionary automatic spiral tube formers that combine the most advanced technology with one of the smallest footprints in the industry. Unlike other compact models, Lockformer Spiral Tube Formers will not sacrifice speed, power, or technology.
Brand: Lockformer
Type: Spiral Tube Former
Model: 1.2
High-Speed Capacity
28-18 Gauge Galvanized Steel
28-22 Gauge Stainless Steel
Diameter Range: 3”-64”
Speed: 235 ft/min
Motor: 15 HP motor,
Voltage: 230/460/3 phase/60 Hz, 100A (Special voltages available)
Dimensions: Length: 72” x Width: 68” x Height: 62"
Weight: 3,000 lbs.
- Self-diagnostics and digital length control
- Spiral Smart Technology™, user-friendly control system takes the guess work out of set-up and pressure settings for proper operation (1:20 Video)
- Flying Slitting Device for silent cutting tube cut-off and max material thickness of 20 gauge (2:07 Video)

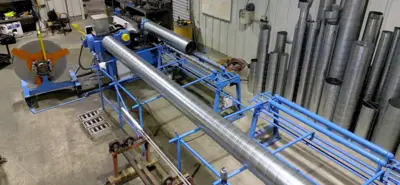

- 10″ standard run-off table (2:19 Video)
- Single Decoiler (2:23 Video)
- Only compact unit in the industry that is fully automatic
- Ergonomically friendly to the operator
OPTIONS:
- Individually sized forming heads for each size tube needed (Specify)
- Horizontal pallet decoiler for up to 3 stacked coils to same time. (2:25 Video)
- Additional 10’ Run Out table for 20’ Pipe
- Corrugating Unit (2:47 Video)
- Flying Crimper - Automatically crimps the seam of the spiral duct while the tube is still moving
- Heavy Gauge Boom Kit
Upgrade to the Model 2.0:
Produces spiral pipe from 28-14 gauge (0.50-2.0 mm) thickness with maximum speeds of 287-344 ft/min (84-104 m/min) depending on gauge
