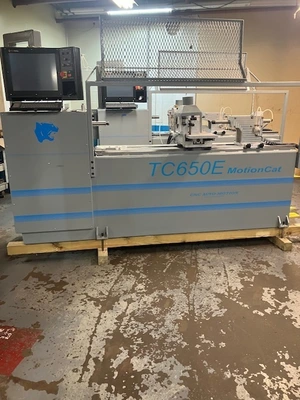

MOTIONCAT TC650E CNC LATHE

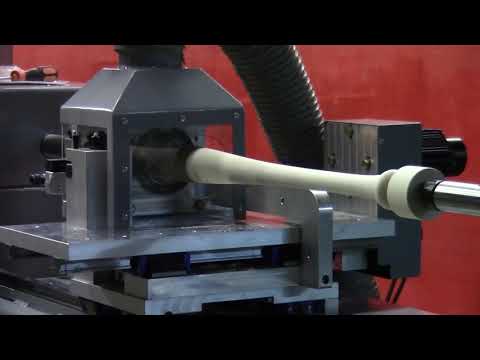

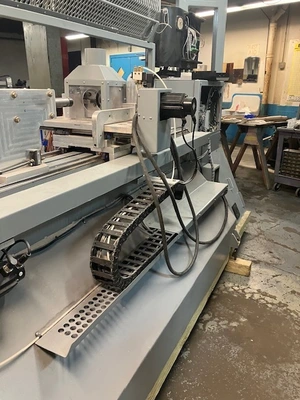

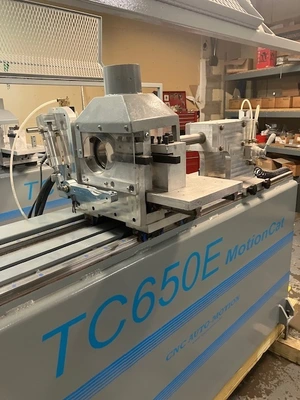

The Motioncat TC650E is a 2-Axis CNC controlled wood turning lathe designed for turning spindles, posts, columns, and even baseball bats if that is your finished product. Profiles are designed in CAD/CAM software provided with the machine and stored on the control computer for easy recall. This eliminates the need for changing templates between jobs which can be time consuming and expensive. The lathe runs on single phase power so it can even run in small workshops or a garage. Standard features include a flip up safety guard and dust extraction hood as well as center punch mounted on the machine
Brand: MOTIONCAT
Model: TC650E
Type: CNC WOOD LATHE
S/N: H04064
* Factory Refurbished with a 1 Year warranty
2 Axis CNC controlled turning lathe
50" maximum capacity between centers
7" maximum turning diameter of round stock
5" maximum turning diameter of square stock
3 HP spindle motor, 220V single phase
Air actuated tailstock
Headstock centering device for easy centering
Centering punch mounted on machine for easy center punching of blanks
Double sided carbide blades for simple blade replacement
Micro adjustment of steady rest blade
Flip up safety guard
Dust extraction hood
Heavy steel construction to control vibration
Thomson precision linear rails and ball screws
Square steady rest (optional)

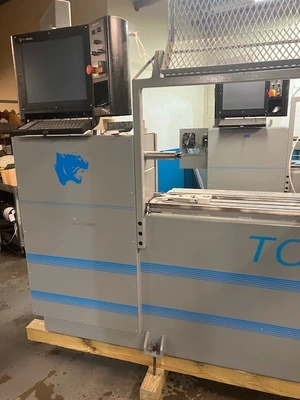

Centroid control system including flat panel LCD monitor with touch screen
BobCad CAD/CAM design software
Motor: 220V / 1PH
2 DAYS OF TRAINING AT CNC AUTO-MOTION FACTORY IN WARREN, PA ALSO INCLUDED (BUYER PAYS FOR TRAVEL)
NEW CENTROID CONTROL SYSTEM, NEW SPINDLE MOTOR AND INVERTER ALSO INCLUDED
Options Available:
- Bat cupping machine (+ $11,750)
** List price for New Motioncat is $74,500
TERMS:
FOB Warren, PA - 1-Year Factory Warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
