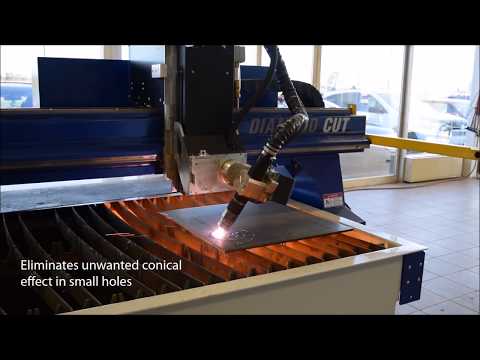

The Machitech Diamond Cut™ Plasma Table is a compact industrial cutting system designed for high precision sheet metal and heavy plate cutting applications. It’s unitized construction and patented inverted linear rails provides exceptional accuracy and cut quality.
Table Capacity: 4″
Clearance Under Gantry: 8.5″
Cutting Speed: 500 IPM (related to process)
Max Speed Traverse: 1800 IPM (on 480v drives)
Repeatability: 0.001″
Positioning Accuracy: 0.002″
Available sizes: 5’x10’ up to 12’x45’ (custom available)
Unitized contruction, build with Compactness in mind
Heavy Duty Construction for High Production needs
Magnetic Torch Breakaway System
Machitech Automatic Torch Height Controller
Bosch Rexroth AC Servo Motor Drives (Ethercat)
Innovative Patented Inverted Rails System
Fully-welded and Machined tables (Downdraft or Water)
6”x8” Steel Gantry Fully Machined and Welded
Oversized End-trucks for Maximum Stability
Agma 10 Helical Rack & Pinion on all axis
Bosch Linear Ways on Machined surfaces
Ultra-precise Helical Planetary Gearboxes
Heat shield under gantry to protect against heat
Cables and hoses are protected by an Enclosed Power Track
Hypertherm HPR400XD Plasma System
Hypertherm Edge Connect™ Controller w/ Machitech Enclosure
On-site installation and tailored training included
Free lifetime remote support
