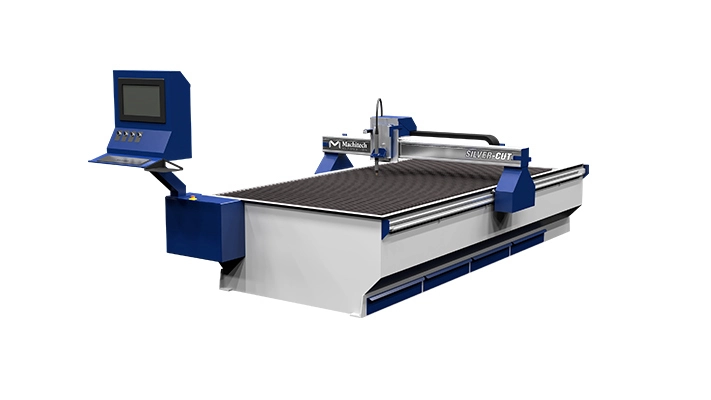

The Machitech Silver Cut HD™ Plasma Table is a full fledged high definition plasma cutting table for small to medium fabrication needs. This light Industrial HD Cutting Table features a compact unitized construction and Hypertherm XPR170 plasma.
Table Capacity: 1.5″
Clearance Under Gantry: 5″
Cutting Speed: 500 IPM (related to process)
Max Speed Traverse: 600 IPM
Repeatability: 0.003″
Positioning Accuracy: 0.004″
Available sizes: 5’x10’ or 6’x12′
Unitized contruction, built with Compactness in mind
Magnetic Torch Breakaway System
Machitech Automatic Torch Height Controller
Bosch Rexroth AC Servo Motor Drives (Ethercat)
Self-cleaning DualVee Linear slide system
Fully-welded and Machined tables (Downdraft or Water)
6”x6” Steel Gantry Fully Machined and Welded
Agma 10 Straight Rack & Pinion on all axis
Low backlash Helical Planetary Gearboxes
Cables and hoses are protected by an Enclosed Power Track
