MACHITECH TITANIUM CUT

Have one to sell?

info@norcalmachinery.com

Quantity

MACHITECH TITANIUMCUT Plasma Cutters | Norcal Machinery (1)

MACHITECH TITANIUMCUT Plasma Cutters | Norcal Machinery (2)

MACHITECH TITANIUMCUT Plasma Cutters | Norcal Machinery (3)

MACHITECH TITANIUMCUT Plasma Cutters | Norcal Machinery (4)

MACHITECH TITANIUMCUT Plasma Cutters | Norcal Machinery (5)

MACHITECH TITANIUMCUT Plasma Cutters | Norcal Machinery (6)

MACHITECH TITANIUMCUT Plasma Cutters | Norcal Machinery (7)

MACHITECH TITANIUMCUT Plasma Cutters | Norcal Machinery (8)

MACHITECH TITANIUMCUT Plasma Cutters | Norcal Machinery (9)

MACHITECH TITANIUMCUT Plasma Cutters | Norcal Machinery (10)

New

Have one to sell?

Overview

Type:

Plasma Cutters

Manufacturer:

Model:

TITANIUMCUT

Status:

For Sale

Description

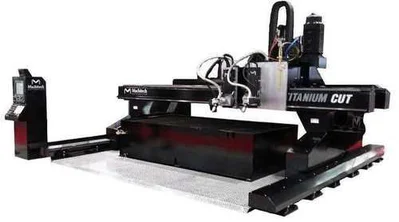

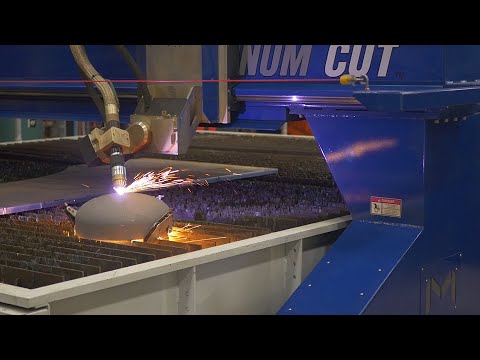

The Machitech Titanium Cut™ Plasma Table is a plate processing machine engineered for the most demanding customers such as Steel Service Centers, Ship Building and Structural Steel Applications. It's the perfect plate processing machine for high production volume & industrial drilling and tapping.

Specifications

ImperialMetric

Cut-Width	10'	3,048 mm
Cut-Length	20'	6,096 mm
Plasma Power	300 A	300 a
# Plasma Torches	4	4
Cutting Speed	800 ipm
Rapid Traverse Speed	1000 ipm

Table Capacity: 8″ (custom available)
Clearance Under Gantry: 12″
Cutting Speed: 500 IPM (related to process)
Max Speed Traverse: 1000 IPM
Drilling Diameter: 3″
Tapping Diameter: 1.5″
Repeatability: 0.001″
Positioning Accuracy: 0.002″

Equipped With

Available sizes: 10’x20’ up to 30’x300’ (custom available)
Gantry & Rails System, modular for expansion down the road
Double 12”x12” Heavy Duty Fully Machined Steel Gantry
Heavy Duty Construction for High Production needs
40HP Suhner Drilling and Tapping Station
6 station automatic tool changer
Magnetic Torch Breakaway System
Machitech Automatic Torch Height Controller
Bosch Rexroth AC Servo Motor Drives (Ethercat)
Innovative Patented Floor Mounted Inverted Rails System

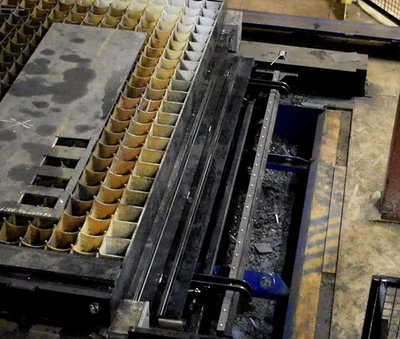

Fully-welded and Machined tables (Downdraft or Water)
Oversized End-trucks for Maximum Stability
Agma 10 Helical Rack & Pinion on all axis
Bosch Linear Ways on Machined surfaces
Ultra-precise Helical Planetary Gearboxes
Heat shield under gantry to protect against heat
Cables and hoses are protected by an Enclosed Power Track

Hypertherm HPR400XD Plasma System
Hypertherm Edge Connect™ Controller w/ Machitech Enclosure

On-site installation and tailored training included
Free lifetime remote support
