The MMB 500 is suitable for processing small, medium, and large aluminum, steel, and stainless steel plate and bar stock workpieces at a variety of angles. The machine is designed for hands-free operation and is capable of providing a variety of bevel angles between 30° and 60° (25° and 55°).

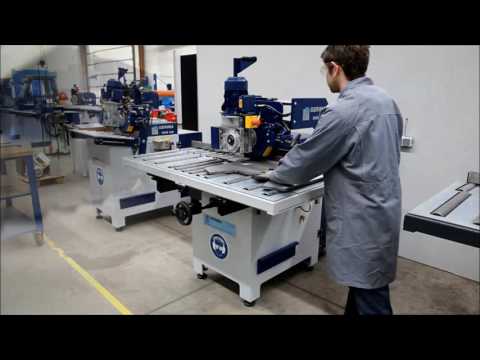

New SAAR MMB 500 Stationary Beveling Machine
This high-speed stationary beveling machine produces a very high-quality bevel and is suitable for a multitude of beveling applications. The MMB 500 features separate, variable speed motors for feed-rate adjustment and a milling head with eight, 4-sided indexable inserts.
Brand - SAAR Hartmetall
Type - Stationary Beveling Machine
Model - MMB 500
Bevel width: (Steel: 1", SS: 3/4", AL: 1-1/8")
Bevel Angle: Variable 30° and 60° (25°/55° or 20°/50°)
Material Thickness: .250 - 4"
Spindle RPM: 2000-5500
Automatic feed, manually adjustable, up to 10 ft./min.
Milling Head: 8 square inserts (4 edges) with a set of inserts
Voltage: 480 Volt/ 16A
Power: 5,500 Watt
Weight: 2,000 lbs.
This high-speed stationary beveling machine produces a very high-quality bevel and is suitable for a multitude of beveling applications. The MMB 500 features separate, variable speed motors for feed-rate adjustment and a milling head with eight, 4-sided indexable inserts.
Bevels metal plate and bar stock
Bevels aluminum, steel, stainless
Variable angles between 30° and 60° (25°/55° or 20°/50°)
Variable speed motors for feed-rate and milling-head
Hands-free operation due to rubberized drive wheel
Milling head with 8, 4-sided indexable inserts
Feed rate up to 10 feet/min
Bevel widths up to 1-1/8 inch (30mm)
Automatic air/oil lubrication system
Easy access to milling head
Safe operation
