GEKA GR-80 - 3" x 3" CNC Angle Processing
Have one to sell?
New

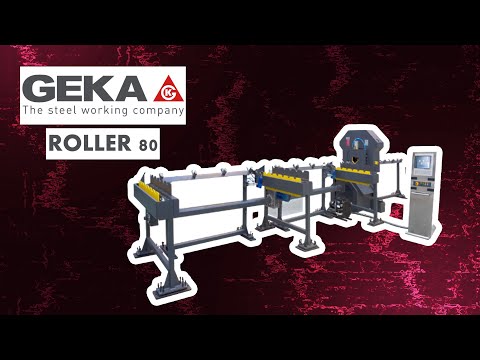

The GEKA GR-80 formerly the Gamma Roller 80/C2PL80, completely automated CNC solution for Angle Punching and Shearing.
The GEKA GR-80 (Gamma Roller 80 / C2PL) is a CNC solution for automatic angle punching and angle shearing in Geka’s Gamma Series. This CNC line automatically processes angles, including cutting and punching on both sides, of materials from 1/8″ to 3/8″ in thickness. The angle is moved by means of a traction wheel with servomotor.
Brand: GEKA
Model: GR-80
Minimum L 1-1/2 x 1-1/2 x 1/8″
Maximum L 3 x 3 x 3/8″
Nº Punches 2 (1/wing)
Maximum Diameter 1″
Punching Force 38 US Tons
Shear station tonnage 73 US Tons
X Axis Speed up to 1,481″/min
INPUT CONVEYOR UNIT.
Servo motor-driven tracking roller. Independent encoder.
PUNCHING UNIT.
One punch per wing. Adjustable gauges. Hydraulic hold-down device.
SHEARING UNIT.
Performs clean cuts without wasting material. Blades are quickly and easily accessible.
USER-INTERFACE.
Touch Screen. Windows based PC control. Remote assistance over the internet. USB Port.
OPTIONS:
Automatic Side Loader
Exit Conveyors
Line Pro Advanced with Nesting and DSTV importing
- Capacities based on a material resistance of 65,000 tensile.
- The manufacturer reserves the right to make modifications without prior notice.
