Boschert Eagle Notcher
Have one to sell?
New

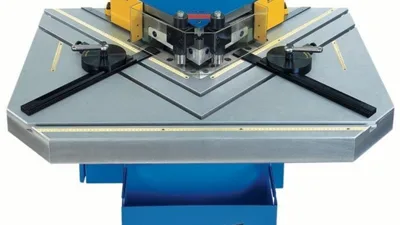

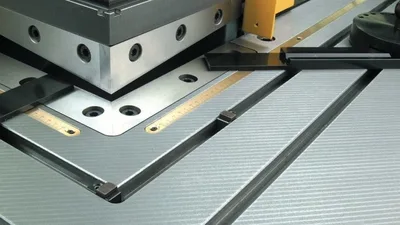

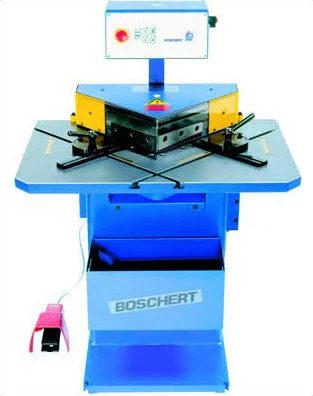

The Eagle notching machines are adjustable up to 50 strokes per minute in jog, single or continuous mode. They have a 35″ wide by 25″ deep table with a milled bed surface so materials do not float or stick. The Eagles’ capacity is 1/4” for mild steel and 3/16” for stainless steel, with notch widths of 8-7/8” x 8 7/8” for a 90° notch. Choose from a 90° fixed angle or variable angles from 30° to 120°.
Brand: Boschert
Model: Eagle
Type: Corner Notcher
Cutting Capacity 1/4" (3/16")
Cut Length 8-7/8" x 8-7/8"
Cut Angle 90°
Machine Weight 1540 lbs
Overall Dimensions 49" x 36" x 53"
Table Dimensions 35" wide by 25"
2nd Station -
Motor Size 6.5 hp
