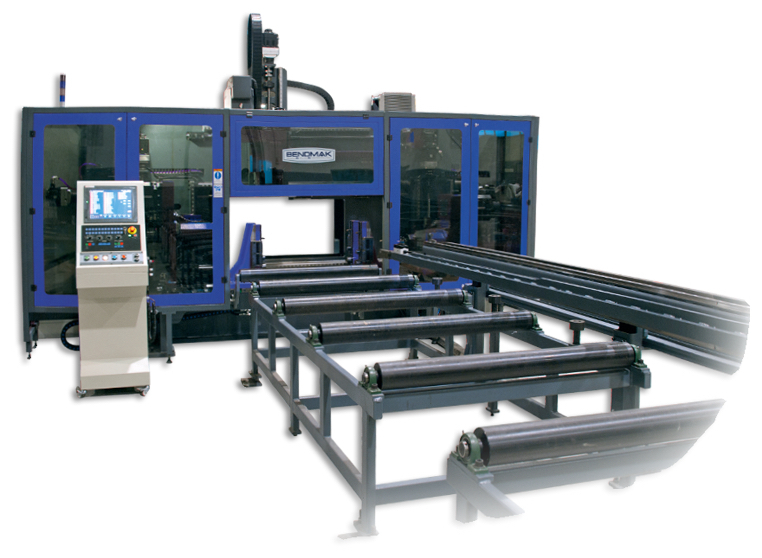

BENDMAK B3DL ECO 7 Axis Three Spindle CNC Drilling Line
Brand BENDMAK
Model B3DL 1200
Control Panel Mitsubishi/ Siemens
Number of Drilling Units - Vertical 1 Vertical
Number of Drilling Units - Horizontal 2 Horizontal
Drilling diameter 3/8"- 1-1/2"
Spindle Speed 50-3000 rpm
Spindle Motor Power 30 HP / 103 lbf.ft
Spindle torque 206 lbf.f t
Automatic Tool Changing Unit For each spindle one ATC with 4 tools
Tool Cooling System MQL
Tapping Tool for each drilling axes (Optional) M10 - M24 (with special set)
Beam width 48”
Beam Height 20”
Tool Holder BT 40 (internal coolant hole)
Weight 28.660 lbs
Machine Dimensions 7,9' x 23,0' x 10,5'
Scribe Marking 3 Side Standard, 4th is Optional
BENDMAK B3DL ECO 7 Axis Three Spindle CNC Drilling Line
In B3DL, in addition to the X and Y axes, a servo Z axis is also added to each spindle unit. In the B3DL, many rows of holes can be drilled in the sliding direction of the material without moving the material over a length of 20".
Hydraulic Marking Tool (Opt.)
A Rotary Stamping Head and positioning of that head are done via a servo-motor. Only the movements of the blocking jaw and the blocking jaw plate are hydraulic. Marking can be done in a 2.4" x 6" area. Letter height: 15/32". During marking, there is no need to move the profile, as the writing head makes rotary and axial feed. The printing head pressure force is determined by the hydraulic pressure adjustment.
Scratch Marking Kit (Opt.)
The marking unit is located in ATC like a regular tool. It turns 18,000 RPM with 90 PSI of air pressure. The marking depth can be adjusted to the desired depth and the adjusted depth is ensured by a marking unit that can offset +/- 0.3"
